Productdetails
- Ideally suited for assembly work (on the ladder, on the scaffolding, ...) and, with protection class IP 21S, generally also for outdoor work
- Suitable for use on the generator eg in company workshops, schools, metal construction, on construction sites or for farmers
- Hot Start: By automatically increasing the welding current temporarily, the arc ignites safely and is instantly stable
- Anti-stick: By accidentally sticking the electrode, the welding current is automatically reduced, thus preventing the electrode from annealing
- Arc Force Control: Internal monitoring of welding current and voltage eliminates short circuits quickly and safely. This stabilizes the arc and allows the electrode to be easily processed
Dimensions and weights |
---|
Length approx. | 320 mm |
Width/depth approx. | 135 mm |
Height approx. | 255 mm |
Weight approx. | 4.4 kg |
Duty cycle |
---|
at Imax. 40°C electrode | 25 % |
Current at 100% DC 40°C electrode | 80 A |
Electrical connections |
---|
Input current | 36.5 A |
Total output | 8,4 kVA |
Electrical Data |
---|
Supply voltage | 230 V |
Mains frequency | 50/60 Hz |
Electrode |
---|
Weldable electrodes | 1,6 - 4,0 mm |
Power consumption |
---|
Electrode | 5 kVA |

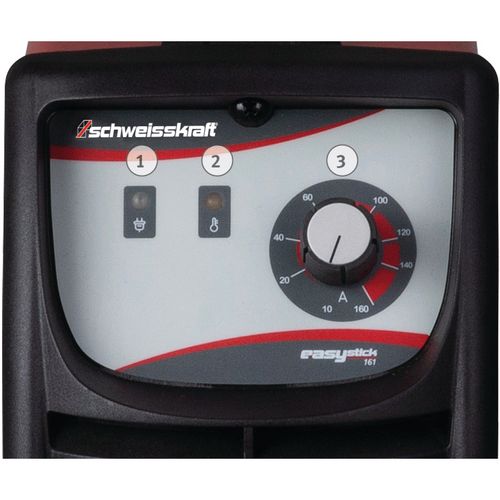

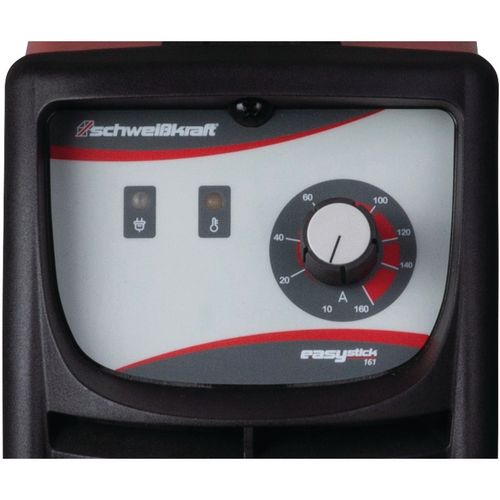

Setting range |
---|
Electrode | 10 - 160 A |
Standards and certifications |
---|
Standard | EN 60974-1:2012, EN 60974-10:2014 |
EMC class | A |
Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
Marking | CE |
Unit: pc(s).
Packaging unit: 1

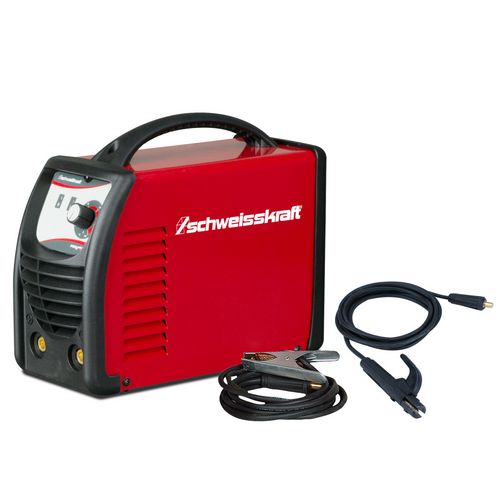

- 3 m welding cable 16 mm² with electrode holder 300 A
- 3 m ground cable 16 mm² with ground clamp 300 A
