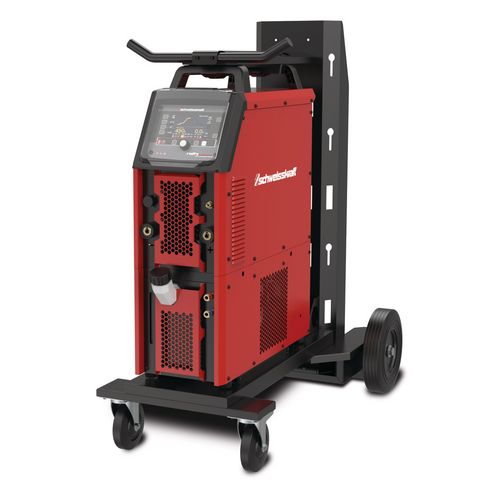

CRAFT-TIG 453 LCD AC/DC PULSE Set

Promotional set including welding helmet and welding gloves

4.519,39 EUR excl. Tax / pc(s).
5.378,07 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 1074453SET

Are you interested in this product?

Put a request

Find Trader

Productdetails

Built using modern inverter technology
Ideally suited for assembly work thanks to protection class IP 21S, generally also for outdoor work
Universally applicable for welding all common electrode types
TIG pulsing enables welding with reduced heat input
HF high-frequency ignition ignites during TIG welding without touching the workpiece
Adjustable balance
The quiet-running fans dissipate the heat well from the devices and thus achieve a high duty cycle
Time-controlled fan with stand-by mode
Precise adjustment of welding parameters via digital display
Nine programs can be saved

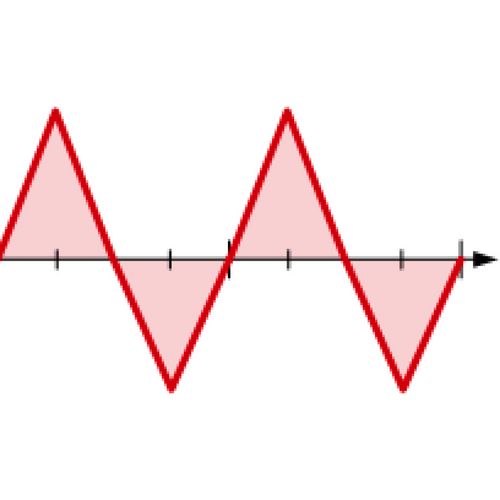

AC triangular wave welding output: Reduced heat input for the same current setting, particularly useful for welding thin metal

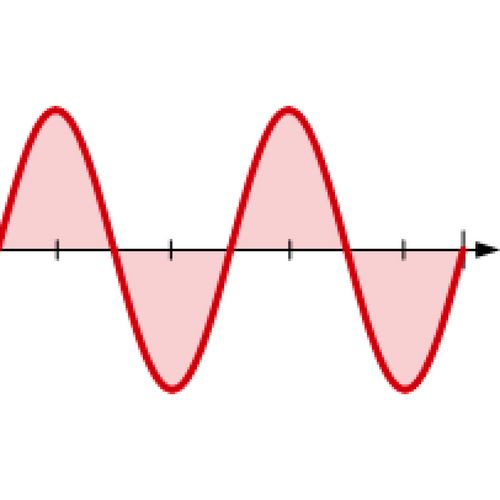

AC sine wave welding output: Traditional AC TIG welding waveform, quieter, "softer" arc characteristics

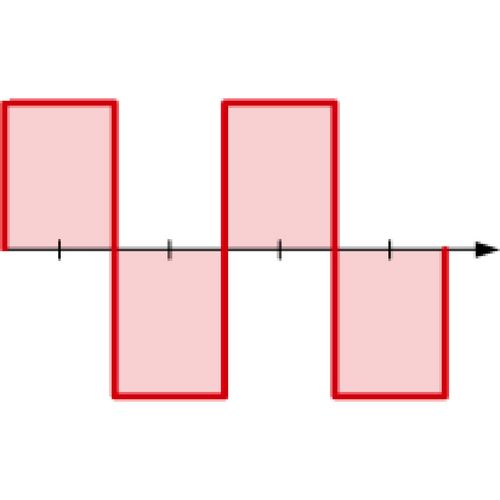

AC square wave: Focused arc for maximum penetration, fast travel speed with best directional control
MMA mode with hot start and arc force control
Only available including factory assembly, item number 9002800

Device data
Pulse rate	0.5 999 Hz
Ignition	high frequency
Torch cooling	gas / water

Dimensions and weights
Length approx.	1050 mm
Width/depth approx.	575 mm
Height approx.	1050 mm
Weight approx.	80 kg

Duty cycle
at Imax. 40°C TIG DC	60 %
at Imax. 40°C electrode	60 %
Current at 100% DC 40°C TIG DC	350 A
Current at 100% DC 40°C electrode	350 A

Electrical connections
Input current	MMA AC/DC 30.4/29.8, WIG AC/DC 23.5/23.1 A

Electrical Data
Total output	17.1 kVA
Input current TIG AC	23.5 A
Input current TIG DC	23.1 A
Input current electrode AC	30.4 A
Input current electrode DC	29.8 A
Supply voltage	400 V
Mains frequency	50 Hz

Electrode
Weldable electrodes	1.6 5.0 mm

Input
TIG AC	16.3 kVA
TIG DC	16 kVA
Electrode AC	21 kVA
Electrode DC	20.6 kVA

Setting range
TIG DC	5 450 A
Electrode	10 450 A

Standards and certifications
Standard	EN 60974-1:2012/EN 60974-10:2014
EMC class	A
Explanation EMC class	This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system.
Marking	CE

VPE


Sicherheits- und Warnhinweise
Safety and warning notices

Unit: pc(s).
Packaging unit: 1

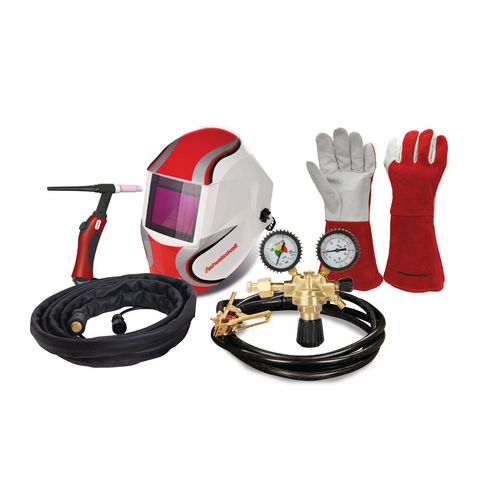

Gas hose 4 m incl. quick connector
TIG torch SR18 8 m with up/down function (water-cooled)
Pressure reducer
4 m earth cable 70 mm² with earth clamp
Trolley
Water cooling unit
VarioProtect XXL-W-2 TC
TIG welding glove Basic size L/size 9

Process MMA	✔
Process TIG pulsing	✔
LC display	✔
AC delta wave	✔
AC square wave	✔
AC frequency	✔
Programs storable	✔
