| Device data | |
|---|---|
| Pulse rate | 0.5 999 Hz |
| Ignition | high frequency |
| Torch cooling | gas / water |

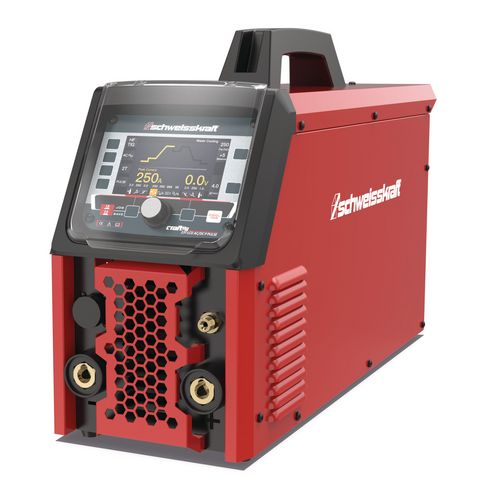

TIG welding machine
CRAFT-TIG 231 LCD AC/DC P Pulse SET
For use in the workshop and on site. Available as a special offer set including a welding helmet and welding gloves
2.120,39
EUR excl. Tax / pc(s).
2.523,26
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1074231SET
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Ultrarobust and efficient IGTB inverter
- IP 21S and robust design also make it perfect as an installation device
- Digital and intelligent ignition management ensures even better and gentler ignition behavior, especially in the AC range
- Improved cooling concept ensures maximum duty cycle
- Professional features such as Spot, Multispot and now also with I2
- 3 different AC curves for different welding applications
- Adjustable AC frequency and balance
- Innovative LCD display enables easy operation of the machine
- Welds all common electrode types
- PFC module (power factor correction) ensures even mains load and also enables use on long cable drums.
- Suitable for generators
- Optionally also with water cooling
| Dimensions and weights | |
|---|---|
| Length approx. | 585 mm |
| Width/depth approx. | 200 mm |
| Height approx. | 365 mm |
| Weight approx. | 16.2 kg |
| Duty cycle | |
|---|---|
| at Imax. 40°C TIG DC | 100 % |
| at Imax. 40°C electrode | 100 % |
| Current at 100% DC 40°C TIG DC | 230 A |
| Current at 100% DC 40°C electrode | 200 A |
| Electrical connections | |
|---|---|
| Power consumption in idle mode | < 50 W |
| Electrical Data | |
|---|---|
| Total output | 5.6/5.0 kVA |
| Input current TIG AC | 26 A |
| Input current TIG DC | 24.5 A |
| Input current electrode AC | 27.3 A |
| Input current electrode DC | 29 A |
| Supply voltage | 110 / 230 V |
| Mains frequency | 50/60 Hz |
| Electrode | |
|---|---|
| Weldable electrodes | 1.6 4.0 mm |
| Input | |
|---|---|
| TIG AC | 5.97 kVA |
| TIG DC | 5.61 kVA |
| Electrode AC | 6.26 kVA |
| Electrode DC | 6.64 kVA |
| Efficiency | 84.76 % |
| Manufacturer infos | |
|---|---|
| Manufacturer | Stürmer Maschinen GmbH |
| Address | Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany |
| info@stuermer-maschinen.de | |
| Setting range | |
|---|---|
| TIG DC | 5 230 A |
| Electrode | 10 200 A |
| Standards and certifications | |
|---|---|
| Standard | EN 60974-1:2012, EN 60974-10:2014 |
| EMC class | A |
| Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
| Marking | CE |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- SR26 TIG torch, U/D. Gas-cooled, 4m
- Gas hose including quick-connect coupler, 4m
- Ground cable 25 sq mm, with 300A terminal, 4 m
- Pressure regulator
- VarioProtect XXL-W-2 TC RED welding helmet
- Basic TIG welding gloves, size L/size 9
| Power factor correction | ✔ |
| Process TIG pulsing | ✔ |
| LC display | ✔ |
| Single Spot | ✔ |
| Multi Spot | ✔ |
| AC delta wave | ✔ |
| AC square wave | ✔ |
| AC frequency | ✔ |
| Water cooling connection | ✔ |
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
