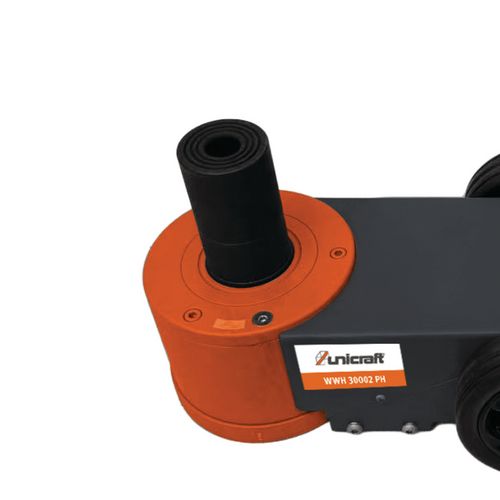

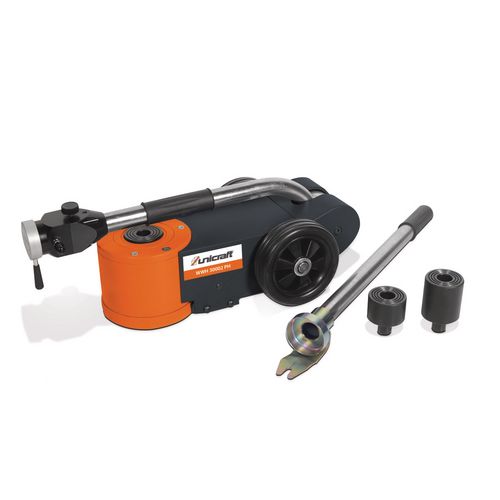

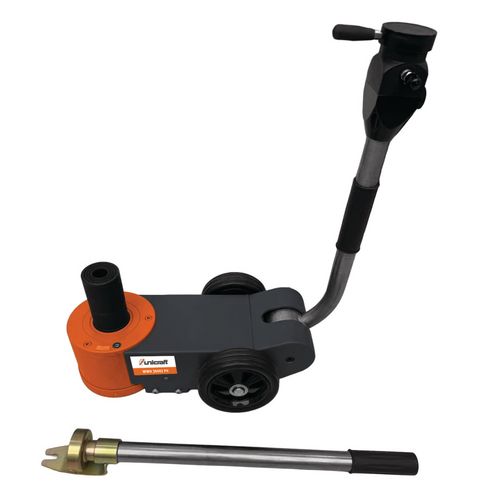

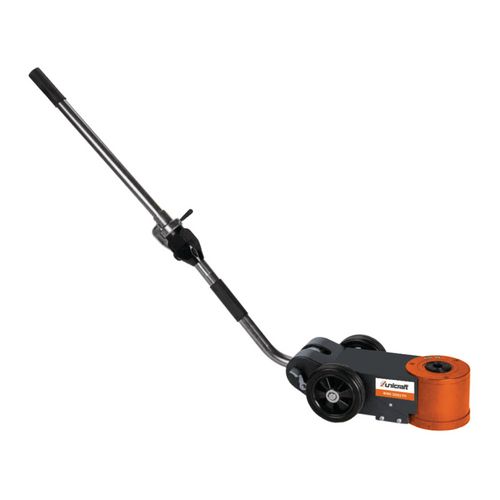

Trolley jack
WWH 30002 PH
Pneumatic-hydraulic jack for controlled, safe lifting and lowering in the workshop
1.299,00
EUR excl. Tax / pc(s).
1.545,81 EUR incl. 19% Tax / pc(s).
1.545,81 EUR incl. 19% Tax / pc(s).
Promotional price *
1.199,00 EUR excl. Tax / pc(s).1.426,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2026 in Germany.
Art.-No. 6201132
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Controlled, safe lifting and lowering
- For operation with compressed air from an external generator
- Two-stage lifting system
- Hard chrome-plated pistons with smooth surface
- Robust solid rubber wheels for easy maneuvering in the workshop
- Extendable handle for lifting, carrying and maneuvering
- Also suitable for on the road thanks to its low weight of just 32 kg
| Load capacity | 30 t |
| Explanation Load capacity | Load capacity is 30 or 15 t depending on the final height |
| Lifting height | 74 / 69 mm |
| Height of top sections | 45 / 75 mm |
| Min. clearance | 150 mm |
| Operating pressure | 9 – 12 bar |
| Air consumption | 61 l/stroke |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 503 mm |
| Width/depth approx. | 280 mm |
| Height approx. | 150 mm |
| Weight approx. | 32.4 kg |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

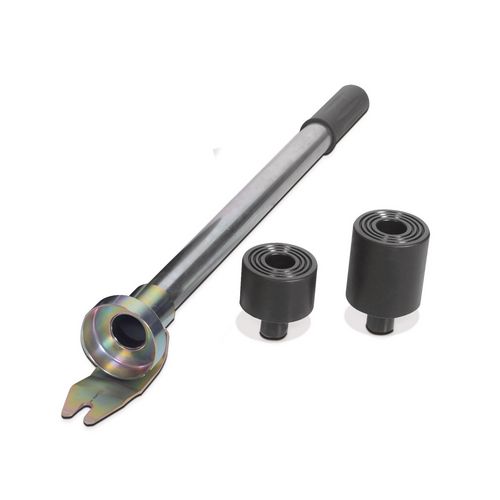

- Lever extension
- Extension piece 45 mm
- Extension piece 75 mm
