Brandimage to Product PHH 1003 E

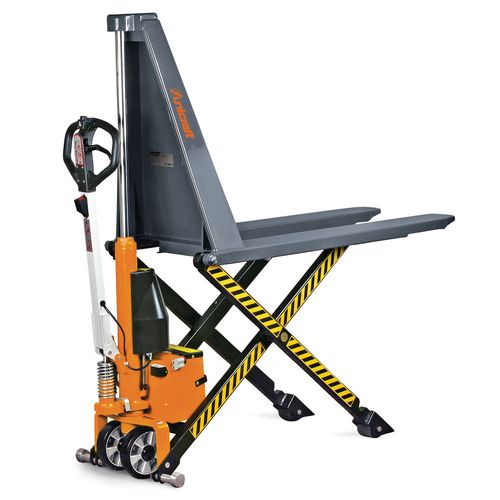

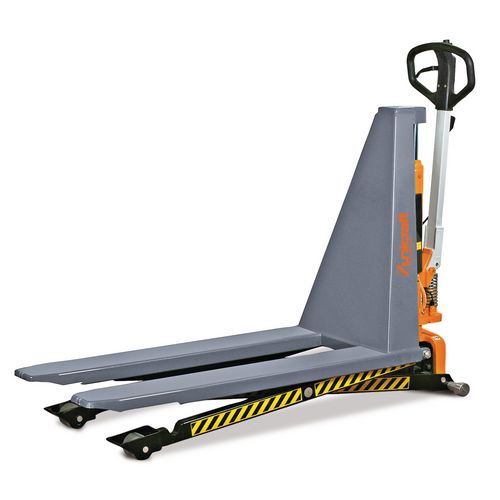

Scissor pallet truck

PHH 1003 E

With electro-hydraulic lifting device with 1 t lifting capacity

2.299,00 EUR excl. Tax / pc(s).
2.666,84 EUR incl. 16% Tax / pc(s).
Promotional price *
1.849,00 EUR excl. Tax / pc(s).
2.144,84 EUR incl. 16% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2021 in Germany.

Art.-No. 6150104

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Robust electro-hydraulic lifting and lowering device
    • Hydraulic pump with hard chromed piston with overpressure valve
    • Double usable as electrically or manually operated scissor lift truck z. B. during the charging of the battery
    • Manual lowering, speed infinitely and smoothly adjustable via sensitive discharge valve
    • Frame and fork in stable and torsion-resistant shell construction
    • Ergonomically shaped drawbar with additional plastic coating

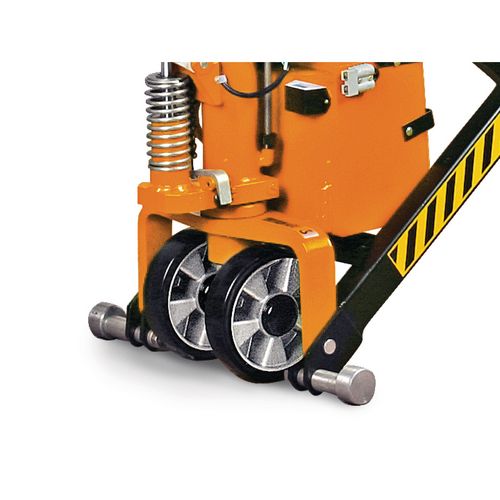

    • Extra trip with aluminum castors and fork rollers with polyurethane-wrapped solid rubber treads
    • Maintenance-free precision ball bearings in all wheels and castors
    • Standard with maintenance-free battery with five-hour runtime (12 V / 60 Ah)
    • Charging the battery is possible via any 230 V socket


    Room amenities

    shaft

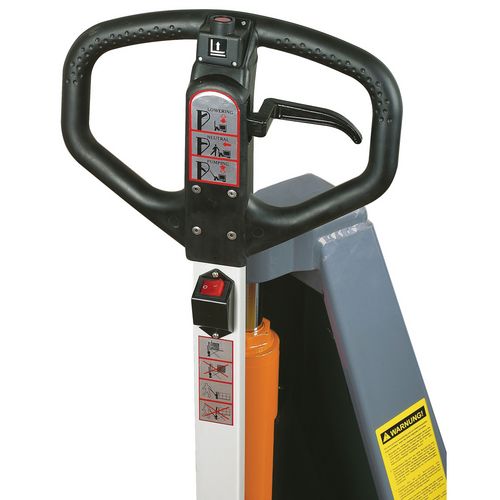

    • The ergonomically shaped drawbar can be operated with one hand and additionally coated with plastic for optimum comfort

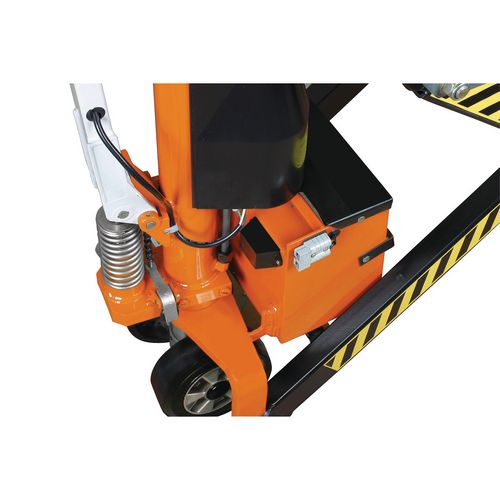

    Robust electro-hydraulic lifting and lowering device

    • The lowering speed is automatically reduced for heavy loads to avoid damage
    • With LED indicator of the charge level of the battery

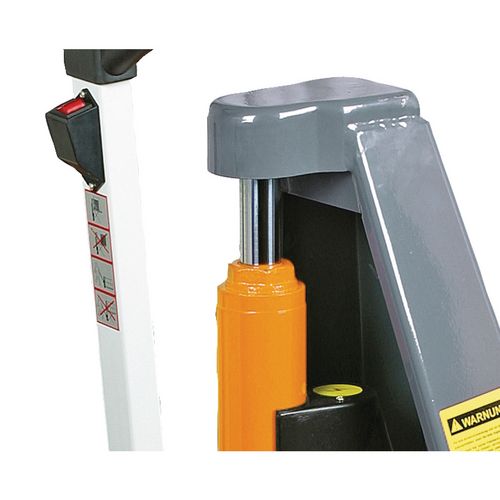

    hydraulic pump

    • High quality hydraulic pump with hard chromed piston and relief valve


    Support feet for a secure stand

    • When inflating, the pallet truck is supported at a certain height on the standard support feet
    • This ensures a secure footing and prevents unwanted rolling away



    Load-bearing capacity1 t
    Load-bearing width540 mm
    Fork width160 mm
    Fork length1170 mm
    Lifting range85 - 800 mm
    Turning radius1564 mm
    VPE1
    Dimensions and weights
    Steering rollers diameter180 mm
    Steering rollers width55 mm
    Load rollers diameter75 mm
    Load rollers width50 mm
    Length approx.1715 mm
    Width/depth approx.540 mm
    Height approx.1254 mm
    Weight approx.152 kg
    Electric Data
    Lifting motor output0.8 kW
    Battery voltage12 V
    Battery capacity60 Ah
    Unit: pc(s).
    Packaging unit: 1

    • Battery 12V



    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
