    Brandimage to Product PG-D 411 TEA-S HC

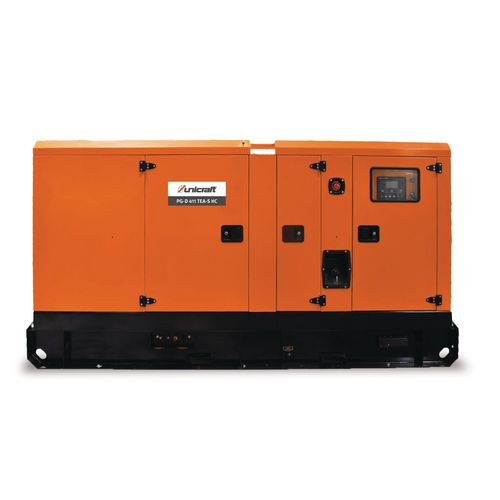

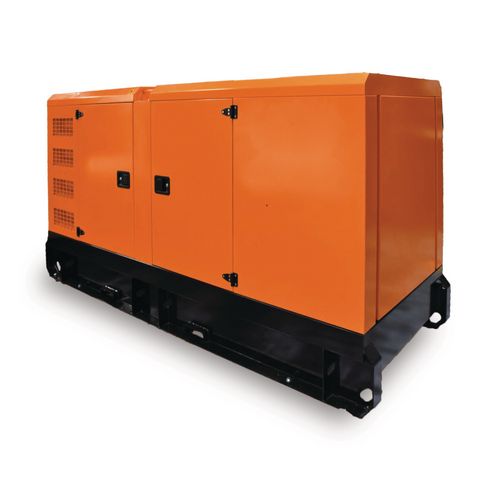

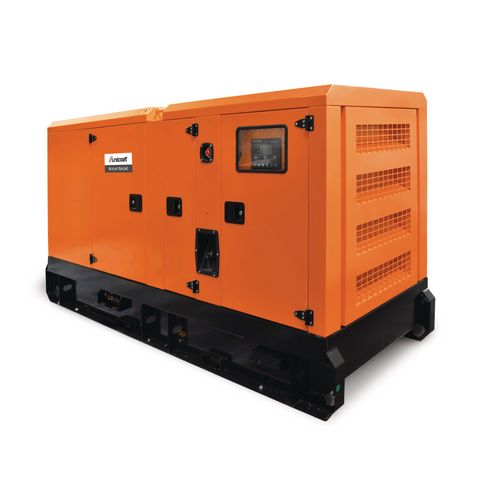

    Synchronous power generator

    PG-D 411 TEA-S HC

    Diesel power generator for home feeding

    13.250,00 EUR excl. Tax / pc(s).
    15.767,50 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 6741141

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Long running times thanks to large diesel tank
    • Including 1h socket and changeover switch
    • Including insulation monitoring for all outputs except 1h socket
    • Suitable for domestic feed-in with manual mains disconnector
    • Also equipped with connection for automatic mains disconnector
    • Soundproofed diesel engine (complies with noise and exhaust emission regulations)

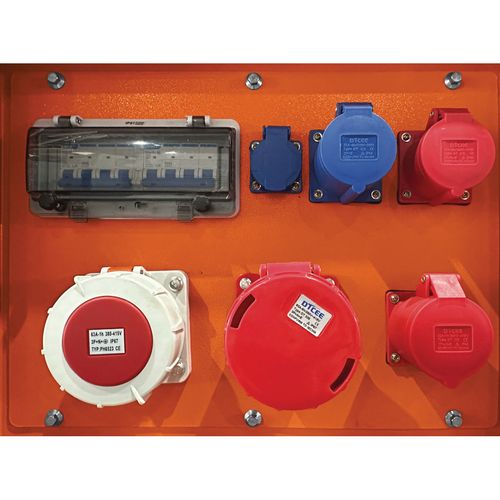

    • Connections ergonomically located on the side of the appliance in a control panel with digital display (DC voltage, output power, AC voltage, frequency, amperage, operating hours)
    • Splash and impact protection thanks to full cladding
    • Electronic voltage regulation AVR
    • Low oil indicator
    • Convenient starting at the push of a button with E-Start
    • With preheater for quick and easy starting even in cold temperatures
    • Equipped with high-quality "Stamford generator"



    You receive the 3-year Stürmer warranty on this item when registering online

    Note: Generators are supplied without coolant!



    Dimensions and weights
    Length approx.2050 mm
    Width/depth approx.930 mm
    Height approx.1150 mm
    Weight approx.880 kg
    Drive
    Motor size3000 ccm
    Power factor0.8 Cos ɸ
    StarterE-Start
    FuelDiesel
    Tank capacity90 l
    Running time at 50% load10 h
    Running time at 100% load8 h
    Oil tank capacity5.5 l
    Coolant capacity10 l
    Sound pressure level Lp75 dB(A)
    Sound power level Lw97 dB(A)
    Max. shift load50 %
    Electrical Data
    Mains frequency50 Hz
    Power generator
    Nominal voltage230 / 400 V
    Apparant power LTP12.3 / 41 kVA
    Active power LTP9.9 / 33 kW
    Apparent power COP11.4 / 38 kVA
    Active power COP9.0 / 30 kW
    Generator IP degree of protectionIP 23
    Socket type1x 230V 16A Schuko / 1x 230V 32A CEE / 1x 400V 16A CEE / 1x 400V 32A CEE / 1x 400V 63A CEE / 1x 400V 63A 1h
    Socket IP degree of protectionIP 44 / IP 67
    Product information EU 2023/2854
    Type of the generated dataUsage data
    Format of the generated dataCommon, machine-readable formats such as JSON
    Amount of dataUp to 5 MB
    Continuous data generation in real timeYes
    VPE1
    Unit: pc(s).
    Packaging unit: 1
