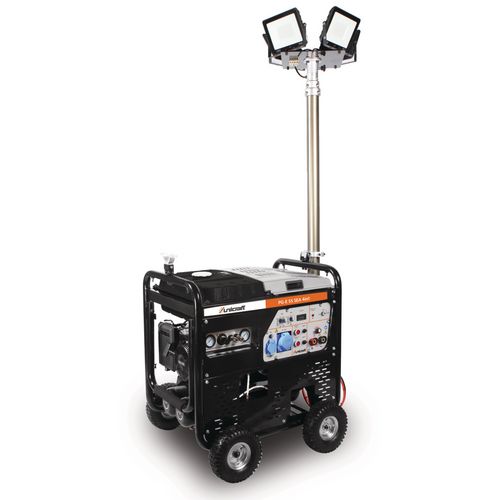

Synchronous power generator
PG-E 55 SEA 4 in 1

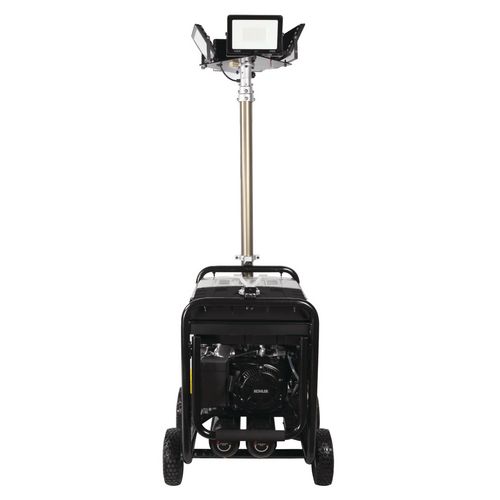

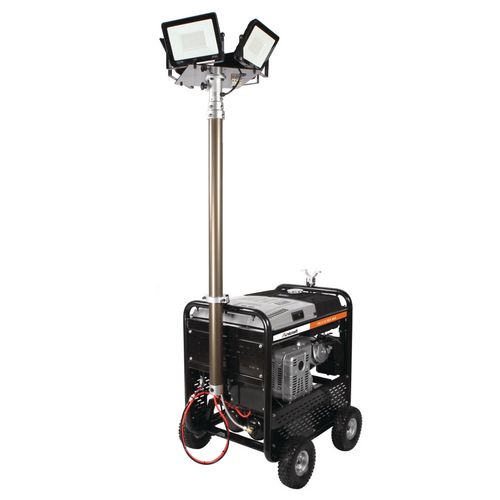

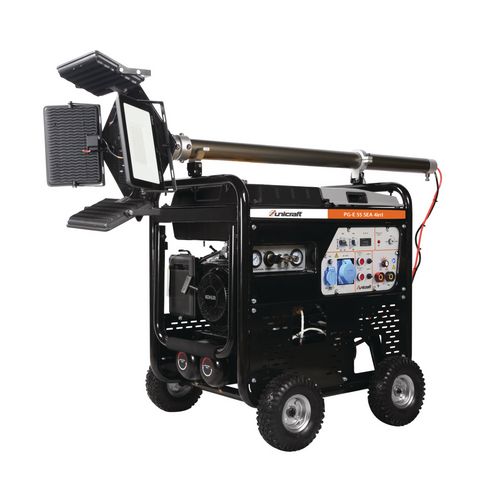

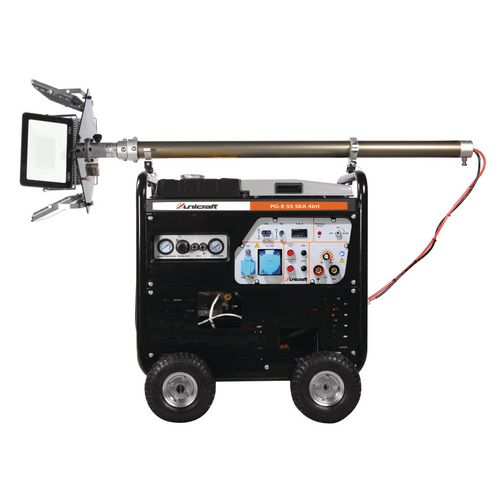

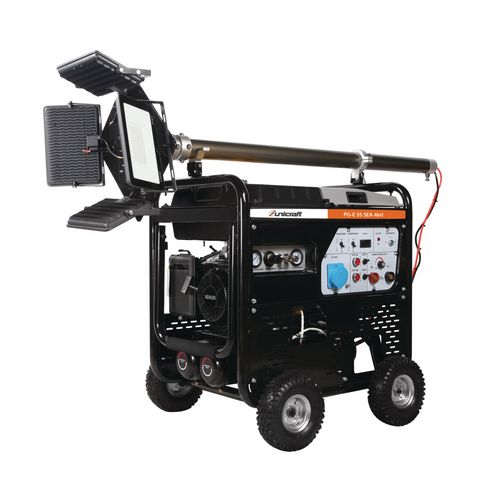

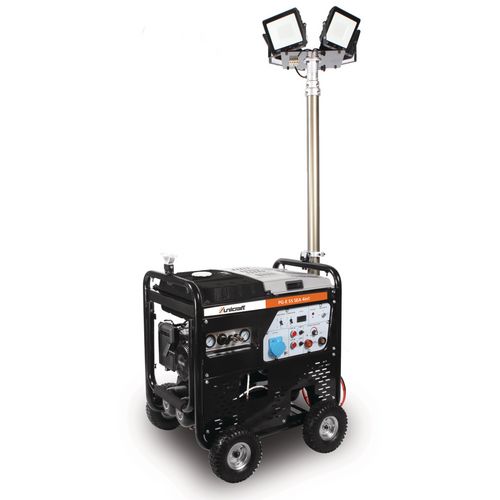

Mobile power generator with welding unit, compressor and built-in light mast
3.589,00
EUR excl. Tax / pc(s).
4.270,91
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 6706955
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Multifunctional power generator for the construction site and outdoor use thanks to welding, compressor and light function
- Equipped with manual and electric start
- Choke for easy cold start
- Integrated AVR control for constant power voltage
- Extremely robust thanks to tubular lattice frame and solid rubber tires
- Height-adjustable light mast with 4 LED lamps for perfect 360° lighting
- Integrated compressor, perfect for compressed air applications on site

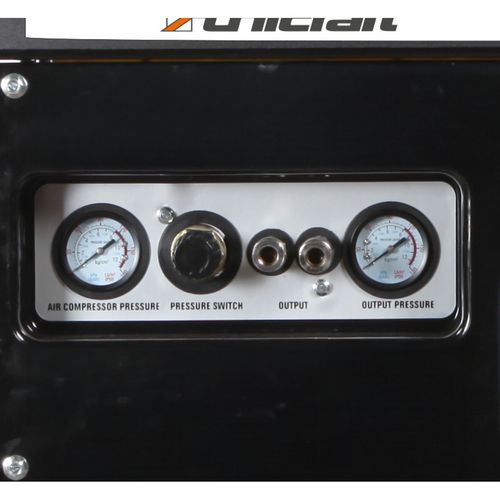

- Two one-hand quick couplings for operating compressed air tools
- Flexibly adjustable welding current up to 200 A - ideal for various welding jobs with the stick electrode
- Does not comply with noise standard 2000/14/EC, not approved for outdoor operation without noise protection measures
- Integrated AVR control for a constant current voltage
- Integrated compressor for compressed air applications on site
- Flexibly adjustable welding current up to 200 A for various welding jobs with stick electrodes
- Height-adjustable light mast with 4 LED lamps for perfect 360° illumination
| Compressor | |
|---|---|
| Motor speed | 3000 min¯¹ |
| Maximum volume flow | 200 l/min |
| Fill capacity | 100 l/min |
| Filling capacity at operating pressure | 6 bar |
| Maximum pressure | 8 bar |
| Pressure vessel capacity | 20 l |
| Number of cylinders | 2 |
| Dimensions and weights | |
|---|---|
| Length approx. | 851 mm |
| Width/depth approx. | 583 mm |
| Height approx. | 780 mm |
| Weight approx. | 158 kg |
| Drive | |
|---|---|
| Power factor | 1 cos phi |
| Starter | Manual start / electric start |
| Fuel | Gasoline |
| Tank capacity | 30 l |
| Running time at 50% load | 18 h |
| Running time at 100% load | 9 h |
| Oil tank capacity | 1.1 l |
| Sound pressure level Lp | 97 dB(A) |
| Sound power level Lw | 106.3 dB(A) |
| Lamp | |
|---|---|
| Light height | 4.5 m |
| Light strength | 4 x 100 W |
| Power generator | |
|---|---|
| Nominal voltage | 230 V |
| Max. voltage deviation (+/-) | 23 % |
| Apparant power LTP | 5.5 kVA |
| Active power LTP | 5.5 kW |
| Apparent power COP | 5.0 kVA |
| Active power COP | 5.0 kW |
| Generator IP degree of protection | IP 21 S |
| Socket type | 1x 230V 32A |
| Socket IP degree of protection | IP 44 |
| Welding machine | |
|---|---|
| Degree of protection | IP 21 |
| EMC class | A |
| Mains plug | DKJ35-50 |
| Open circuit voltage | 75 V |
| Weldable electrodes | 1.6 – 5.0 mm |
| Setting range Electrode | 50 – 200 A |
| Duty cycle at Imax. 40°C electrode | 50 % |
| Current at 100% DC 40°C electrode | 180 A |
| VPE | 1 |
