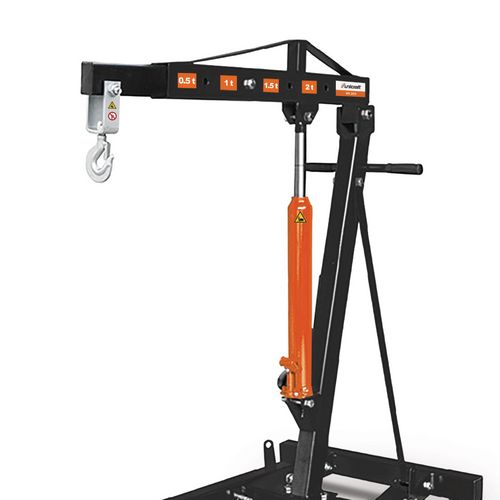

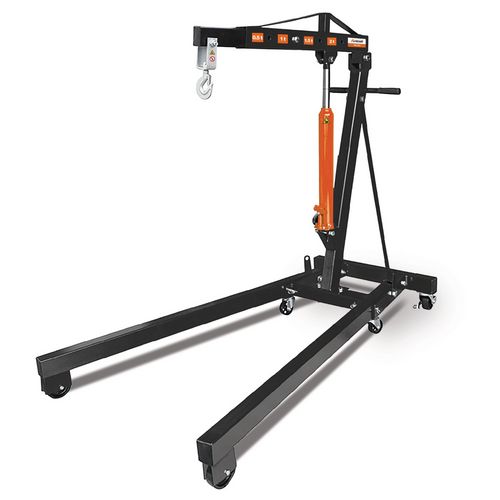

Workshop crane
WK 2003
Folding version with spread chassis
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 6201423
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Crane boom 4x adjustable, load-bearing capacity depending on outreach
- Boom with safety hook
- Four robust castor wheels for stability during use, two of which come with parking brake
- Easily manoeuvrable when folded up thanks to two steering rollers each, parking brake and transport rollers

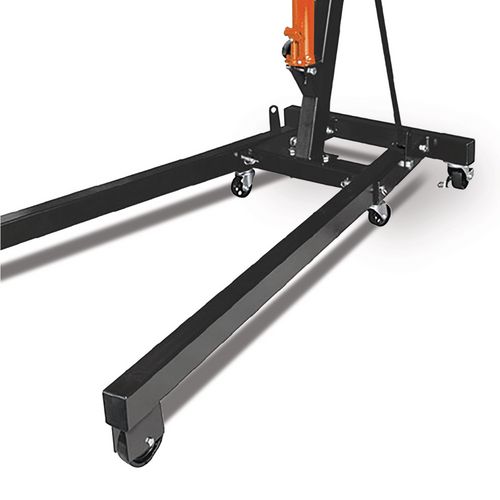

- Space-saving storage thanks to folding tubular feet
- Fast and easy setup and removal.
- Four-way adjustable crane boom, load-bearing capacity depending on outreach
- Two steering rollers with parking brake for maximum flexibility and for safe standing
- Space-saving storage thanks to folding tubular feet
| Load capacity | 0.5 / 1 / 1.5 / 2 t |
| Boom length | 1515 / 1335 / 1155 / 975 mm |
| Lifting height min | 25 mm |
| Max. lifting height | 2240 mm |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Ground clearance | 190 mm |
| Length folded | 850 mm |
| Width/Depth folded | 558 mm |
| Height folded | 1600 mm |
| Length approx. | 1710 mm |
| Width/depth approx. | 1000 mm |
| Height approx. | 1490 mm |
| Weight approx. | 90.5 kg |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Hydraulic pump | ✔ |
| Rollers | four castor wheels, two with parking brake |
| Chassis | spread |
