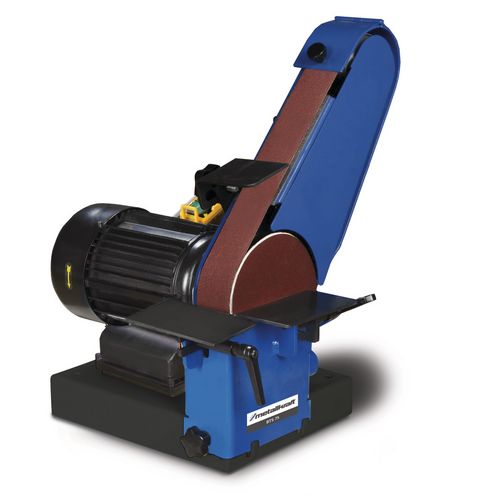

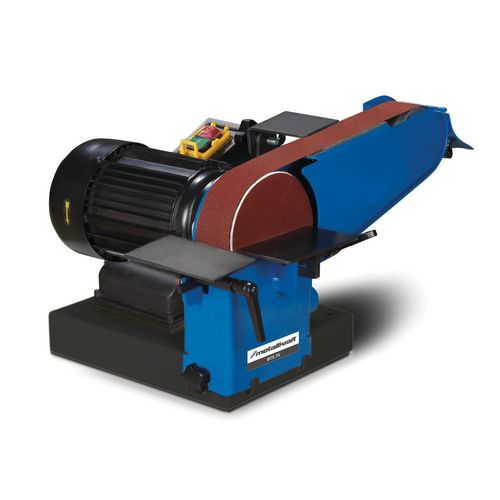

BTS 75

With swivel sanding arm

499,00 EUR excl. Tax / pc(s).
593,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 3700075

Are you interested in this product?

Put a request

Find Trader

Productdetails

Fine adjustment for parallel belt tracking
Two grinding tables, swiveling via clamping lever
Powerful motor
With extraction nozzle on the spark collector box
Sanding belt can be changed in seconds thanks to extremely simple operation
Can be conveniently fixed to the workbench

Dimensions and weights
Length approx.	520 mm
Width/depth approx.	410 mm
Height approx.	320 mm
Weight approx.	30 kg

Electrical Data
Drive motor output	1.1 kW
Supply voltage	230 V
Mains frequency	50 Hz

Extraction
Extraction port diameter	38 mm

Sanding machine
Sanding belt length	1000 mm
Sanding belt width	75 mm
Grinding disc diameter	150 mm
Graphite support length	255 mm
Graphite support width	85 mm
Graphite support thickness	1.5 mm
Circulation speed of grinding belt unit	22 m/s
Drive wheel diameter	150 mm
Contact wheel diameter	75 mm

VPE


Sicherheits- und Warnhinweise
Safety and warning notices

Unit: pc(s).
Packaging unit: 1

Sanding belt 1000 x 75 mm, K80
Sanding sheet Ø 150 mm, K80, velcro-backed
Velcro backing Ø 150 mm
