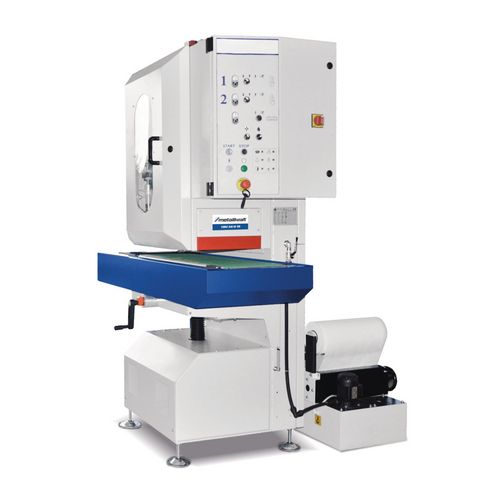

Wide belt sander
DBM 300 W RR
with wet cooling, for deburring and surface finishing, especially for narrow workpieces
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4402105
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Particularly suitable for narrow workpieces
- Due to the open C-frame shape, occasional deburring of parts wider than 300mm is also possible
- Manual height adjustment of the work table with numerical display
- Conveyor table with profiled conveyor belt for optimum support during machining
- Wet cooling for effective heat reduction on small parts or for machining at slow feed rates

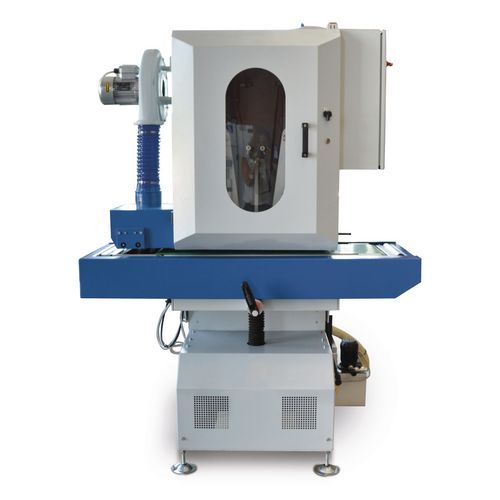

- Effective workpiece drying after the grinding process by radial fan
- Coolant cleaning in external paper belt filter
- Manual height adjustment of the work table with numerical display
- Conveyor table with profile conveyor belt for optimum hold during transportduring machining
- wet cooling for effective heat reduction for small parts or for machining with slow feed
| Application scope | |
|---|---|
| Deburring | ✔ |
| Remove oxide layer | ✔ |
| Blank grinding | ✔ |
| Dimensions and weights | |
|---|---|
| Length approx. | 1600 mm |
| Width/depth approx. | 1600 mm |
| Height approx. | 2100 mm |
| Weight approx. | 750 kg |
| Electrical Data | |
|---|---|
| Input power | 7 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Sanding machine | |
|---|---|
| Max. sanding width | 300 mm |
| Sanding belt length | 1900 mm |
| Sanding belt width | 320 mm |
| Circulation speed of grinding belt unit | 16 m/s |
| Contact wheel diameter | 150 mm |
| Work table | |
|---|---|
| Work table length | 1130 mm |
| Work table width | 350 mm |
| Table height adjustment stroke | 140 mm |
| Table cross stroke | 140 mm |
| Table load max. | 80 kg |
| Table height min. | 780 mm |
| Table height max. | 950 mm |
| Workpiece | |
|---|---|
| Workpiece height min. | 0,5 mm |
| Workpiece height max. | 170 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- 2 x sanding belt with paper backing K120

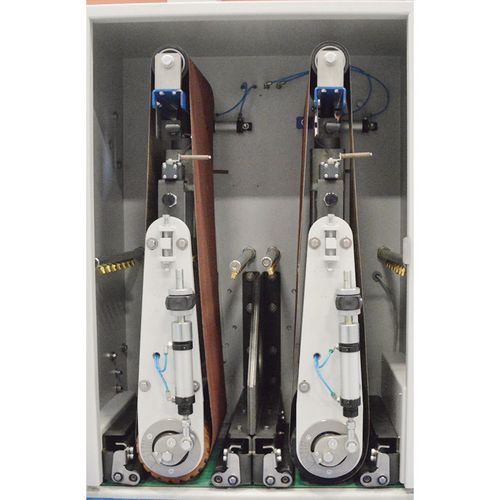

| Sanding belt unit | two |
| Work table height adjustment | Handwheel |
| Wet cooling | ✔ |
