| Dimensions and weights | |
|---|---|
| Column diameter | 80 mm |
| Length approx. | 620 mm |
| Width/depth approx. | 320 mm |
| Height approx. | 1000 mm |
| Weight approx. | 55 kg |

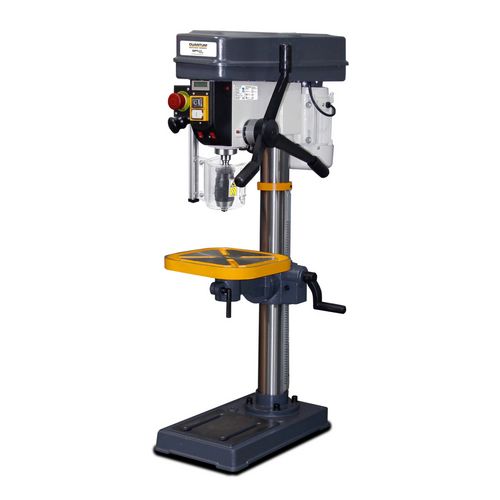

Bench drill
OPTIdrill DQ 22V
With mechanically adjustable speed
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3182080
Are you interested in this product?
Put a request
Find Trader
Productdetails
- User-friendly safety switch, IP 54-rated
- Long, ergonomic quill lever with handles
- Drilling depth stop

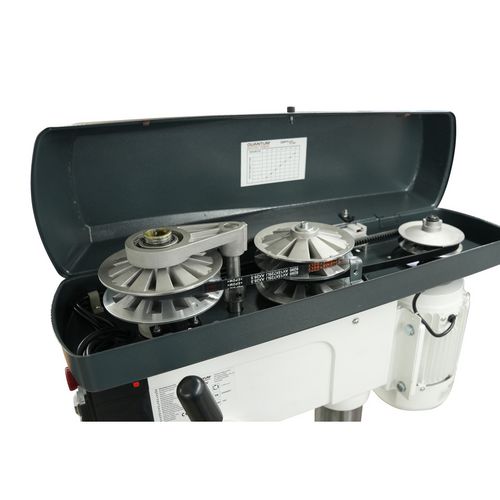

- V-belt guard with safety switch
- Guaranteed concentricity ≤ 0.02 mm, measured in the drill spindle</ li>
- Drill spindle with precision ball bearings
- High-quality quick-action drill chuck
- DQ 31BV Large, height-adjustable chuck guard
- The worktable can be adjusted from +45° to -45°
| Drilling performance | |
|---|---|
| Drilling performance steel (S235JR) | 20 mm |
| Continuous drilling performance steel (S235JR) | 18 mm |
| Drilling table | |
|---|---|
| Workspace length | 290 mm |
| Workspace width | 290 mm |
| T-groove type | diagonal |
| T-groove size | 16 mm |
| T-groove number | 2 |
| Rotation | 360 ° |
| Angle | 45 ° |
| Max. distance spindle - drilling table | 410 mm |
| Electrical Data | |
|---|---|
| Drive motor output | 0.55 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Machine base | |
|---|---|
| Max. distance spindle - machine base | 600 mm |
| Work area length | 460 mm |
| Work area width | 270 mm |
| Manufacturer infos | |
|---|---|
| Manufacturer | Optimum Maschinen Germany GmbH |
| Address | Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany |
| info@optimum-maschinen.de | |
| Speed range | |
|---|---|
| Speed range | 550 2500 min¯¹ |
| Speed control | mechanical |
| Spindle | |
|---|---|
| Quill stroke | 85 mm |
| Spindle chuck | MT 3 |
| Reach | 176 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
