| Dimensions and weights | |
|---|---|
| Length approx. | 1850 mm |
| Width/depth approx. | 1580 mm |
| Height approx. | 1800 mm |
| Weight approx. | 1890 kg |

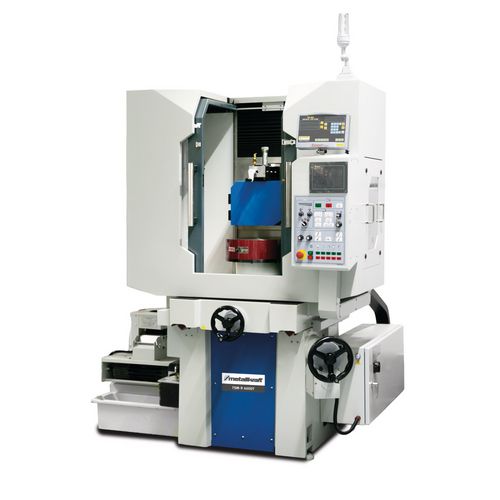

Rotary table surface grinding machine
FSM-R 400 DT
For precision surface grinding
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3943405
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Maximum rigidity and stability thanks to stress-relieved cast iron construction
- V- and flat guideways with Turcite-B coating for smooth, low-wear, and uniform axis movement
- Servo-controlled ball screws on the cross and vertical axes for precise positioning and high repeatability
- Hydraulic longitudinal drive with infinitely variable speed for optimal grinding results

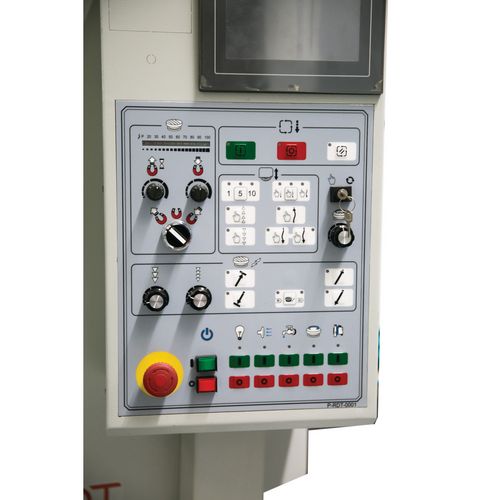

- Modern LCD touchscreen HMI with intuitive machine control
- Automatic vertical infeed
- (AD system) with rapid traverse and fine feed
- Automatic cross-travel adjustment directly via the touch control panel
- Flexible grinding cycles for reciprocating, plunge, and creep-feed grinding
- Enclosed protective guarding
| Electrical Data | |
|---|---|
| Drive motor output | 3.75 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Grinding wheel(s) | |
|---|---|
| External diameter | 355 mm |
| Width | 38 mm |
| Drill hole | 127 mm |
| Manufacturer infos | |
|---|---|
| Manufacturer | Stürmer Maschinen GmbH |
| Address | Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany |
| info@stuermer-maschinen.de | |
| Product information EU 2023/2854 | |
|---|---|
| Type of the generated data | Usage data |
| Format of the generated data | Common, machine-readable formats such as JSON |
| Amount of data | Up to 5 MB |
| Continuous data generation in real time | Yes |
| Data storage location | On the device |
| Data access | On the device |
| Further information | In the operating instructions or at info@stuermer-maschinen.de |
| Spindle | |
|---|---|
| Speed | 1450 min¯¹ |
| Surface grinding table | |
|---|---|
| Clamping surface length | 400 mm |
| X axis | |
|---|---|
| Travel speed | 20 – 110 m/min |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
