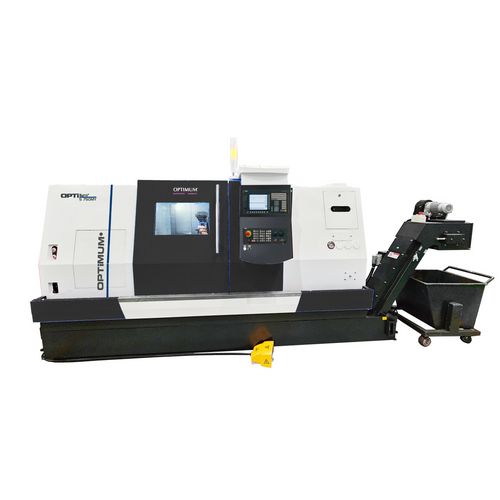

CNC lathe
OPTIturn S 750MY
The OPTIMUM PREMIUM CNC slant bed lathe with Y-axis and driven tools impresses with its high speeds, precision and efficiency
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3515206
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Heavy-duty design
- Compact design

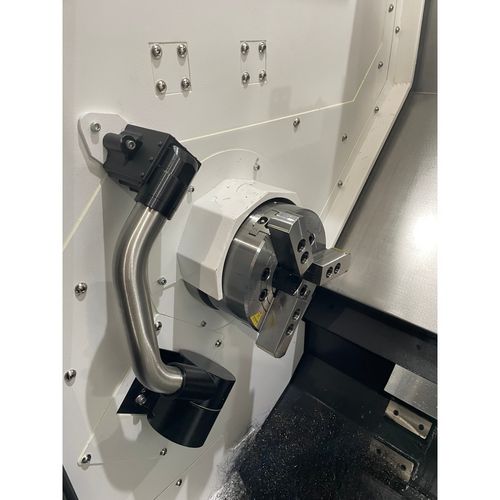

- Renishaw measuring arm for manual tool measurement
- Encoder on main spindle for increased accuracy
- The entire bed design features numerous reinforcing ribs optimized through finite element analysis, ensuring high rigidity, better heat dissipation (thermal symmetry), and more precise machining.
- Ball screw with improved accuracy, rigidity, and heat resistance.
- Siemens servo motors in all axes.
- All servo motors with integrated encoder for maximum accuracy.
- The motor is located on the side of the machine, preventing heat transfer and vibrations caused by the motor.
- 30° inclined bed design for particularly large machining diameters.
- Better, unhindered chip drainage into the Chip tray
- Hydraulic three-jaw lathe chuck Ø 250 mm with soft jaws
- BMT55 tool changer with 12 tool positions and driven tools
- Hardened and precision-ground ball screws for high rapid traverse speeds in all axes. Linear guide, except for the Y-axis, which has a box guide.
- Device for manual tool measurement
- Tailstock with hydraulic quill
- Air conditioning system
- Portable, electronic handwheel with enabling button and emergency stop push button makes program setup much easier.
- Belt-type chip conveyor ensures efficient chip removal.
- Work light for complete illumination of the work area.
- Coolant system with cleaning gun.
- BMT 55 tool changer
- RJ45 , power interface
- EMC (Electromagnetic Compatibility)
- Additional package SIEMENS material defect liability and free online/on-site service OSS Plus
- 1 year maintenance contract Basic included in D/A/CH
| Cooling lubricant system | |
|---|---|
| Coolant pump output | 0.7 kW |
| Tank capacity | 320 l |
| Dimensions and weights | |
|---|---|
| Length approx. | 5040 mm |
| Width/depth approx. | 1880 mm |
| Height approx. | 1990 mm |
| Weight approx. | 4700 kg |
| Electrical connections | |
|---|---|
| Total rated value | 35 kVA |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Fast motion speed | |
|---|---|
| X-axis | 24 m/min |
| Y-axis | 10 m/min |
| Y-axis | 30 m/min |
| Feed force | |
|---|---|
| Feed force X-axis | 8.4 kN |
| Feed force Y-axis | 18 kN |
| Feed force Z-axis | 6.7 kN |
| Machine data | |
|---|---|
| Chuck passage diameter | 74 mm |
| Angled bed | 30 ° |
| Motor torque | |
|---|---|
| X axis | 12 Nm |
| Y axis | 12 Nm |
| Z axis | 12 Nm |
| Speed range | |
|---|---|
| Speed range | 30 – 3500 min¯¹ |
| Spindle | |
|---|---|
| Spindle chuck | A2-8 |
| Spindle bore with hydraulic chuck | 250 mm |
| Main spindle bore | 86 mm |
| Tailstock | |
|---|---|
| Chuck | MK 5 |
| Quill stroke | 100 mm |
| Quill diameter | 100 mm |
| Travel | |
|---|---|
| Travel X axis | 280 mm |
| Travel Z axis | 1280 mm |
| Y axis | ± 50 mm |
| Turret | |
|---|---|
| Type | BMT55 |
| Number of tool slots | 12 |
| Drive motor output | 4.8 kW |
| Max. permissible speed at tool coupling | 4000 min¯¹ |
| Max. tool torque | 20 Nm |
| Vertical spindle | |
|---|---|
| Drive motor output continuous operation S1 | 15 kW |
| Drive motor output S6-30 % operation | 19.5 kW |
| Drive motor torque | 268 Nm |
| Drive motor torque S6-30 % operation | 349 Nm |
| Work areas | |
|---|---|
| Lathe chuck diameter | 500 mm |
| Turning length | 1250 mm |
| Swing diameter above machine bed | 660 mm |
| Swing diameter above planing slide | 480 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Axial tool holder driven tools
- Radial tool holder driven tools
- Boring bar holder
- OD tool holder
- End face tool holder
- Boring bar Ø 20 mm
- Boring bar Ø 25 mm
- Boring bar Ø 32 mm
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26
Deutschland / Germany
96103 Hallstadt
info@optimum-maschinen.de
Dr.-Robert-Pfleger-Str. 26
Deutschland / Germany
96103 Hallstadt
info@optimum-maschinen.de
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Accessories
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
