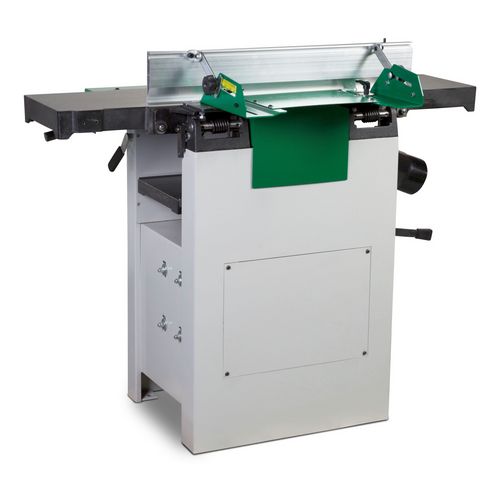

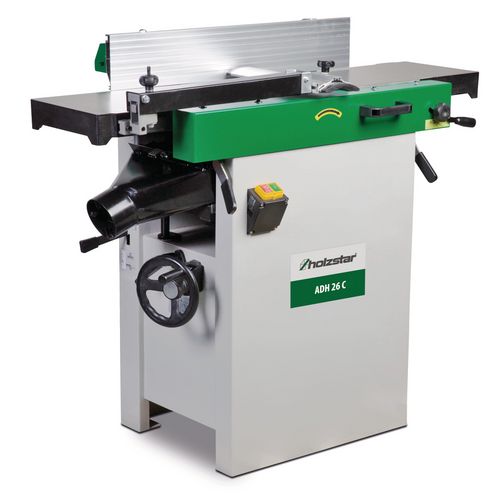

Surface and thickness planer
ADH 26C Spiral (400 V)
For dressing solid wood boards, planks and strips
2.079,00
EUR excl. Tax / pc(s).
2.474,01
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5904029
Are you interested in this product?
Put a request
Find Trader
Productdetails

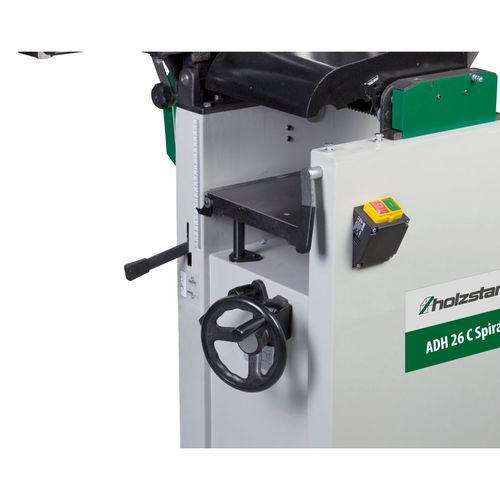

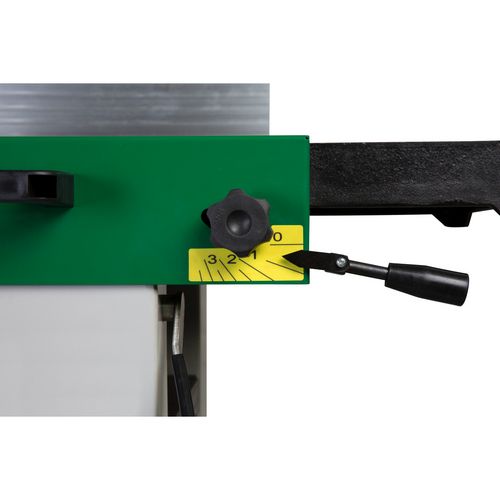

- Simple and precise adjustment of the chip removal for dimensionally accurate thickness planing
- Automatic workpiece feed

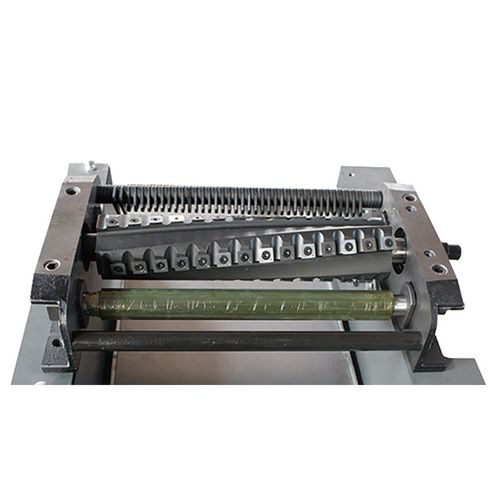

- Straight-toothed infeed roller and rubber-coated outfeed roller for an even feed without damaging the workpiece

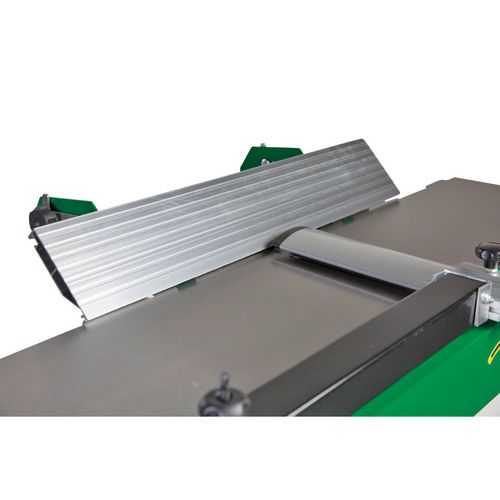

- Easily adjustable aluminum dressing fence, tiltable from 90° to +45°
- Large dressing table made from ribbed die-cast aluminum
- Large thicknessing table made of gray cast iron with polished surface

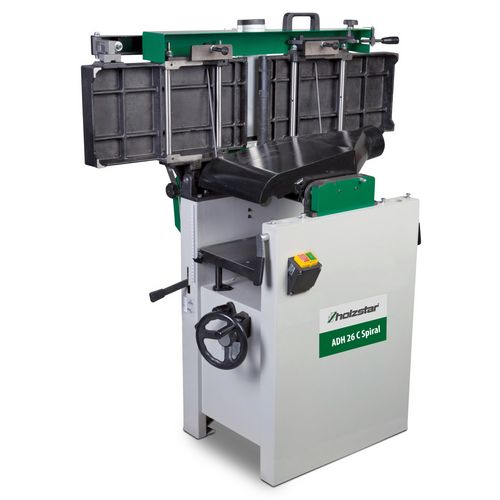

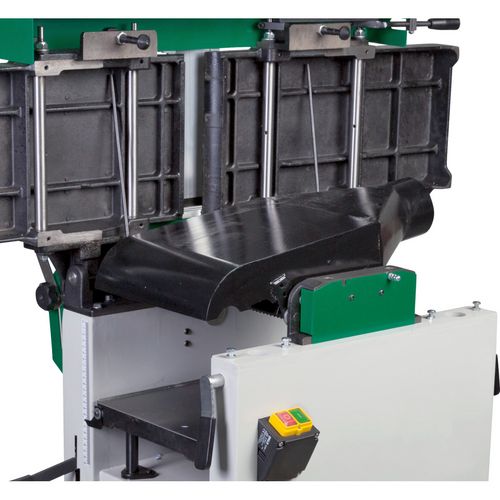

- Integrated, fold-down chip extraction hood
| Dimensions and weights | |
|---|---|
| Length approx. | 1120 mm |
| Width/depth approx. | 630 mm |
| Height approx. | 960 mm |
| Weight approx. | 170 mm |
| Electrical Data | |
|---|---|
| Absorbed power drive motor | 2.2 kW |
| Output power | 1.7 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter thickness | 100 mm |
| Extraction port diameter joints | 100 mm |
| Feed | |
|---|---|
| Speed | 5.5 m/min |
| Jointing | |
|---|---|
| Max. cutting depth | 3 mm |
| Planing stop pivoting range | 90 45 ° |
| Planing knife shaft | |
|---|---|
| Type | Spiral planer cutterblock |
| Number of planing blades | 44 |
| Speed | 5200 min¯¹ |
| Max. planing width | 258 mm |
| Thickness | |
|---|---|
| Working height min. | 5 mm |
| Working height max. | 225 mm |
| Max. cutting depth | 3 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
