Screw compressor

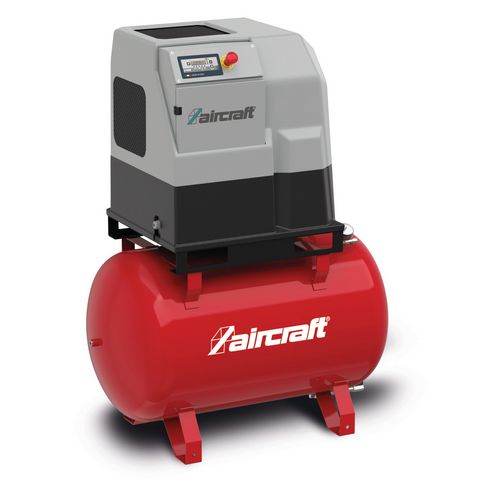

A-CUBE SD 510-270

Compact model with reliable, energy-saving direct transmission for continuous operation

4.990,00 EUR excl. Tax / pc(s).
5.938,10 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 2098110

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

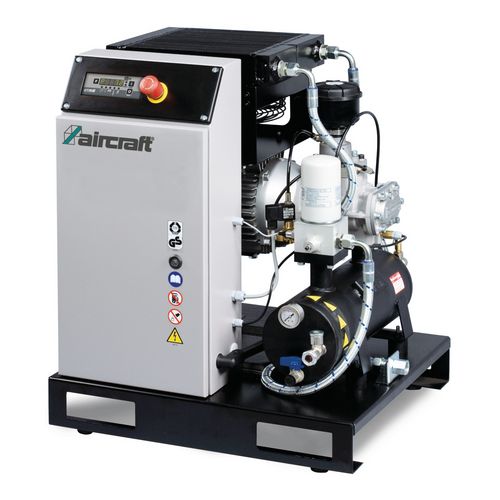

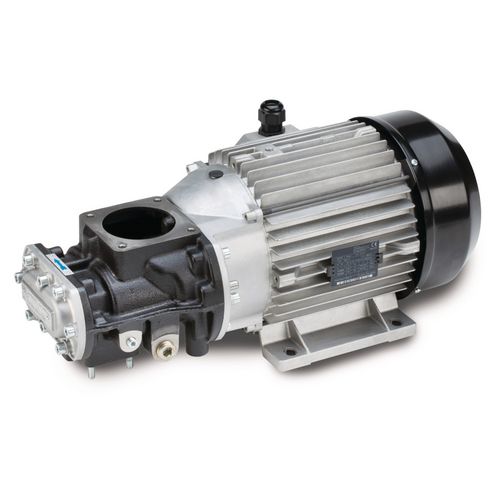

    Coaxial screw compressor with maintenance-free drive and maximum energy efficiency in all pressure ranges. The low compressor speed and the low load on the bearings of the patented direct drive allow very long service lives.

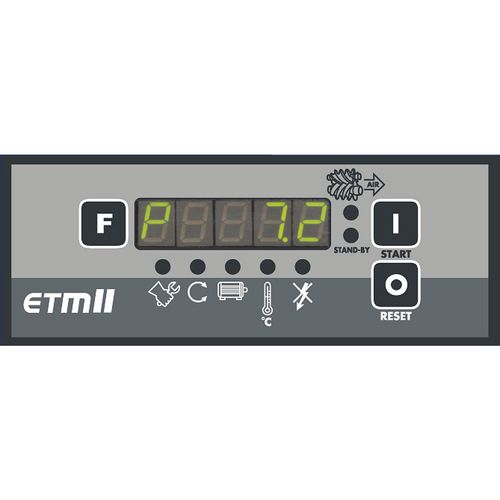

    EasyTRONIC Micro II electronic control for reliability and efficiency
    • For prevention of motor overload, wear reduction and longer service life
    • Monitoring of operating hours, temperature and overload of the motor
    • Control of the motor's direction of rotation via phase sequence relays, thus avoiding possible damage during start-up or after a change of location

    Optimized cooling system

    • Low-noise radial fan guarantees optimum operating temperatures even under unfavorable operating conditions
    • Thermostatically and electronically controlled fan and generously dimensioned heat exchanger result in longer service life and lower fluctuations in oil temperature

    User-friendly in every detail

    • Low noise level, suitable for installation in any working environment
    • Small external dimensions, thus easy transport and installation
    • Easy to service due to optimum accessibility and simple disassembly and assembly of all components requiring maintenance
    • All air and oil pipes made of heat-resistant rubber
    • Star-delta connection as standard
    • Ready for connection with all fittings

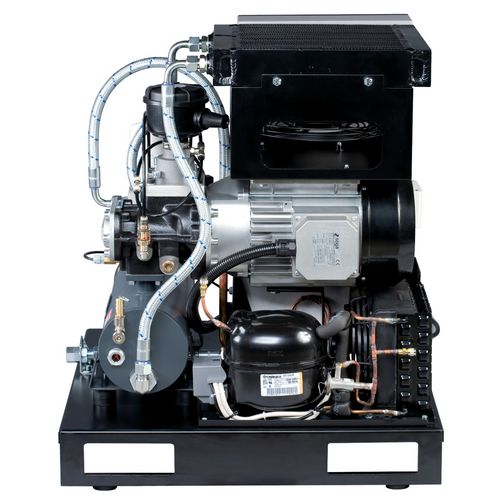

    Integrated refrigerant dryer on ES models

    • Increased reliability of the compressed air system without costly downtime and production delays while ensuring product quality
    • Fully integrated into the housing
    • Ready to use without installation effort
    • Equipped with control panel and timed steam trap



    • Maintenance-free direct drive
    • Low space requirements and energy costs
    • Low noise level
    • Generously dimensioned cooler
    • Easy installation and accessibility of all maintenance positions



    Effective delivery volume approx.460 l/min
    Maximum Pressure10 bar
    Air outlet½ "
    VPE1
    Compressed air tank
    Pressure vessel capacity270 l
    Dimensions and weights
    Length approx.1200 mm
    Width/depth approx.600 mm
    Height approx.1500 mm
    Weight approx.185 kg
    Electrical Data
    Absorbed power electric motor4 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Motor(s)
    Motor typeElectrical
    Speed1450 min¯¹
    Noise emission
    Sound pressure level Lp63 dB(A)
    Explanation sound pressure level LpSound pressure level at 1 m distance according to DIN 45635 T 13
    Unit: pc(s).
    Packaging unit: 1







    ControlElectronical
    Compressed air treatmentOil separator cartridge
    Compressed air tankPowder coated
    Drive transmissionDirect coupling
    Compressor typeFS 26TFC
