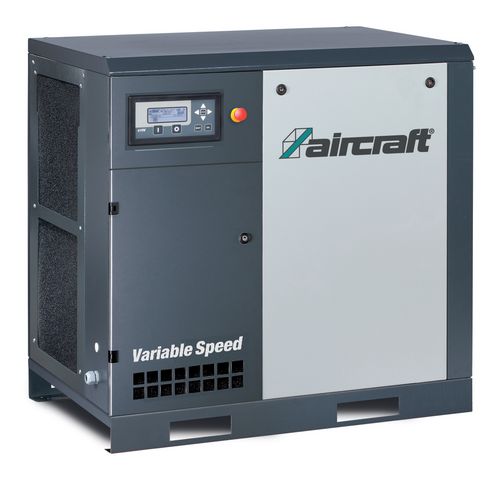

Brandimage to Product A-K-MAX 1108 VS

Direct coupled screw compressor

A-K-MAX 1108 VS

With frequency control (SpeedTronic Control) for use in continuous operation and at 100% utilization

9.075,00 EUR excl. Tax / pc(s).
10.799,25 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 2095702

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Absolute Low maintenance drive with maximum energy efficiency through direct-coupled coaxial screw compressors
    • Standard EasyTronic IV control prevents engine overload, reduces wear and ensures a longer service life

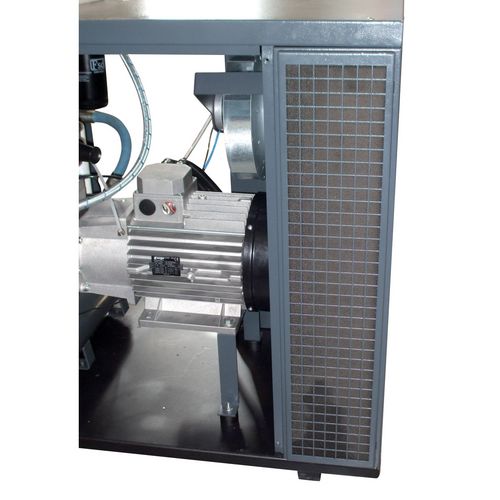

    • High cooling effect and lower noise level due to thermostatically controlled centrifugal fan
    • Longer life of the device and lower fluctuations of the oil temperature thanks to thermostatically controlled fan, optimal cooling air flow and generously dimensioned heat exchanger
    • Less effort for drying and filtration of the compressed air generated by integrated aftercooler
    • Secured maintenance intervals by recording the load and follow-up times via operating hours counter
    • Display of the maintenance requirement via automatic message
    • Avoidance of damage during commissioning or after relocation due to integrated direction of rotation control for the motor
    • Service-friendly due to optimal accessibility and easy assembly / disassembly of all serviceable components
    • Easy transport and setup due to small outer dimensions
    • Monitoring of engine and compressor speed by SpeedTronic Control


    Energy savings with frequency-controlled compressors:

    Based on the frequency converter technology, the delivery volume of the compressor adapts to the actual consumption. The electronic control monitors the engine and compressor speed and keeps the network pressure constant. The user receives advanced advanced technology in a small space.



    Your advantages:
    • Active energy saving
    • Ideal for frequently changing compressed air consumption
    • The variable speed compressor achieves maximum efficiency and keeps the network pressure constant, even when consumption fluctuates widely.



    Effective delivery volume approx.1700 / 680 l/min
    Maximum Pressure8 bar
    Air outlet¾ "
    VPE1
    Dimensions and weights
    Length approx.1000 mm
    Width/depth approx.700 mm
    Height approx.1000 mm
    Weight approx.240 kg
    Electrical Data
    Absorbed power electric motor11 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Motor(s)
    Motor typeElectrical
    Noise emission
    Sound pressure level Lp68 dB(A)
    Explanation sound pressure level LpSound pressure level at 1 m distance according to DIN 45635 T 13
    Unit: pc(s).
    Packaging unit: 1







    Drive transmissionDirect coupling
    Compressor typeFSC 50
