Brandimage to Product A-PLUS 16-13

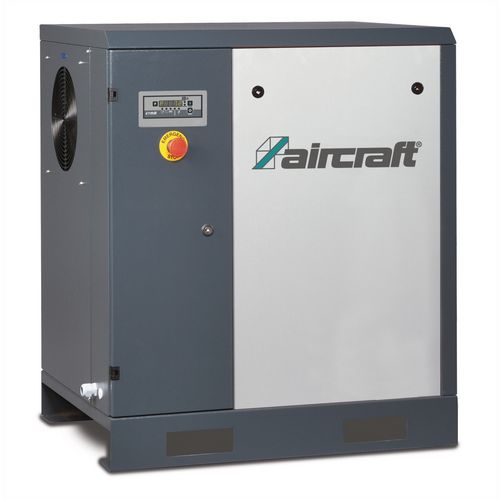

Screw compressor with ribbed belt drive (floor installation)

A-PLUS 16-13

for 100% capacity utilization - designed for maximum operational reliability.

6.395,00 EUR excl. Tax / pc(s).
7.610,05 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 2092806

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

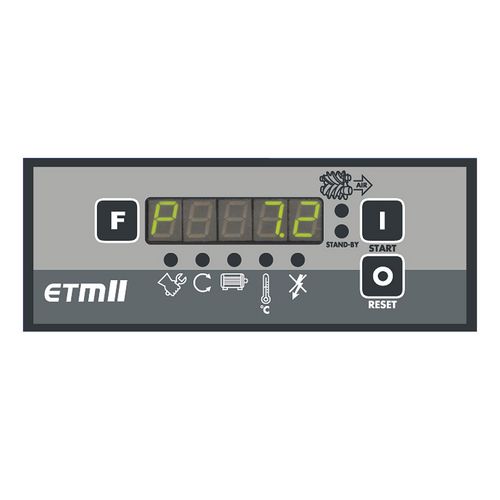

    • EasyTRONIC MICRO II electronic control with pressure sensor operation as standard, thus preventing motor overload, reducing wear and extending service life
    • With star-delta switch

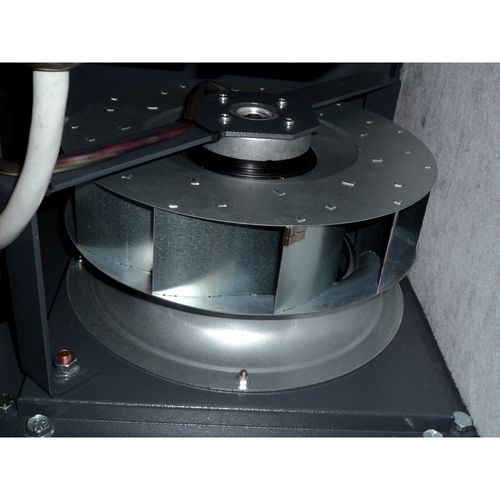

    • High cooling effect and lower noise level due to thermostatically controlled radial fan
    • Operating hours counter records load and overrun times, thus ensuring compliance with maintenance intervals - Indication of maintenance requirement via automatic message
    • Rotation direction control for the motor avoids possible damage during commissioning or after a change of location
    • Screw compressor with wear-resistant Poly V ribbed belt drive and carriage tensioning system

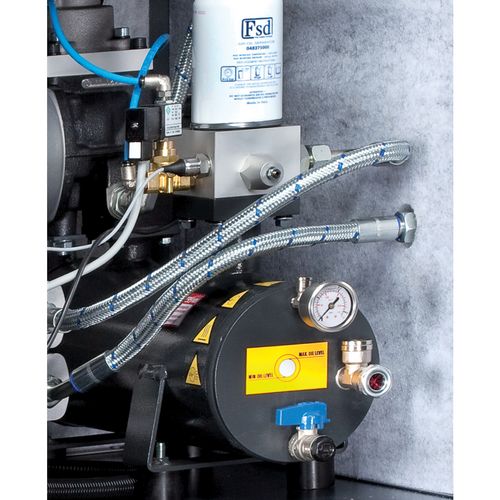

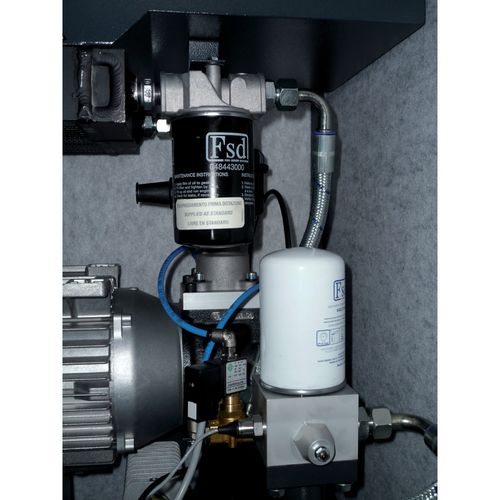

    • Easy maintenance due to easily accessible elements
    • Optimum operating temperatures due to thermostatically controlled fan, optimum cooling air flow and generously dimensioned heat exchanger, thus longer service life, lower fluctuations in oil temperature than with thermostat control
    • Aftercooler as standard, thus less effort for drying and filtration of the generated compressed air
    • Small external dimensions, thus easy transport and installation



    Effective delivery volume approx.1750 l/min
    Maximum Pressure13 bar
    Air outlet¾ "
    VPE1
    Dimensions and weights
    Length approx.800 mm
    Width/depth approx.650 mm
    Height approx.980 mm
    Weight approx.241 kg
    Electrical Data
    Absorbed power electric motor15 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Motor(s)
    Motor typeElectrical
    Noise emission
    Sound pressure level Lp68 dB(A)
    Explanation sound pressure level LpSound pressure level at 1 m distance according to DIN 45635 T 13
    Unit: pc(s).
    Packaging unit: 1







    Drive transmissionRibbed belt
