| Effective delivery volume approx. | 10500/4200 l/min |
| Maximum Pressure | 10 bar |
| Air outlet | 2 " |
| VPE | 1 |

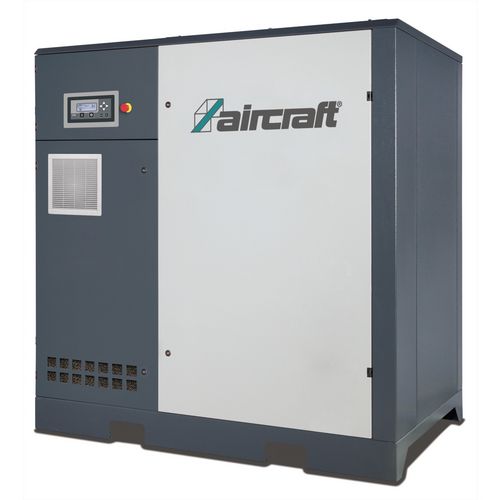

Screw compressor with ribbed belt drive (floor installation with frequency control)
A-PLUS 75-10 VS
silenced screw compressors from 30 to 75 kW
45.290,00
EUR excl. Tax / pc(s).
53.895,10
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2094904
Are you interested in this product?
Put a request
Find Trader
Productdetails

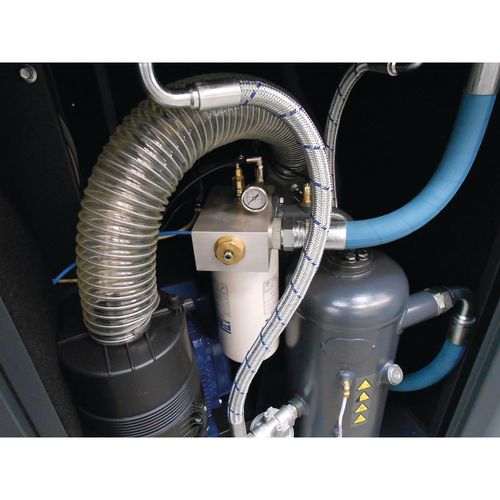

- All main components of the compressor are manufactured by machining using numerically controlled machine tools, including suction regulator, separator block and minimum pressure valve

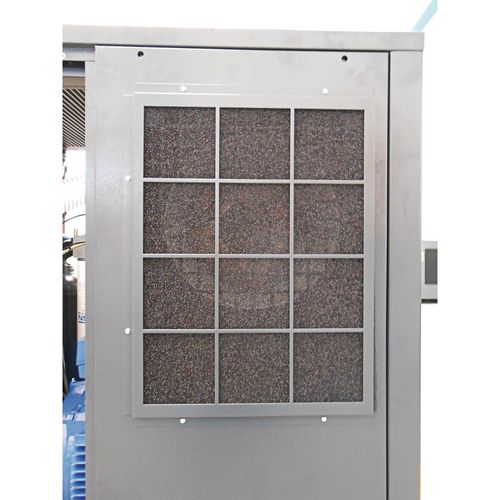

- The cooling takes place via a temperature-controlled centrifugal fan and an oversized combination cooler. This ensures optimal cooling even under the most extreme conditions.
- Generous access panels allow easy maintenance and immediate control of the internal components, reducing the time required for inspection and maintenance to one medium.
- The main operating parameters are monitored by the electronic microprocessor control NRG: In addition to the various functions, a weekly timer for switching on and off is available to meet the requirements of each customer. In addition, up to 4 machines can be controlled simultaneously according to the master / slave principle.
Energy savings through frequency-controlled compressors
Reducing energy consumption and protecting our precious energy resources has become a global challenge given its impact on the environment. The A-PLUS 22, 37, 55 and 75 kW range is also available in a speed control version that combines high performance with energy saving solutions. By using a variable speed compressor in a typical installation, you save a significant amount of energy.
| Dimensions and weights | |
|---|---|
| Length approx. | 1800 mm |
| Width/depth approx. | 1100 mm |
| Height approx. | 2150 mm |
| Weight approx. | 1756 kg |
| Electrical Data | |
|---|---|
| Absorbed power electric motor | 75 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 72 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Drive transmission | Ribbed belt |
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
