Piston compressor

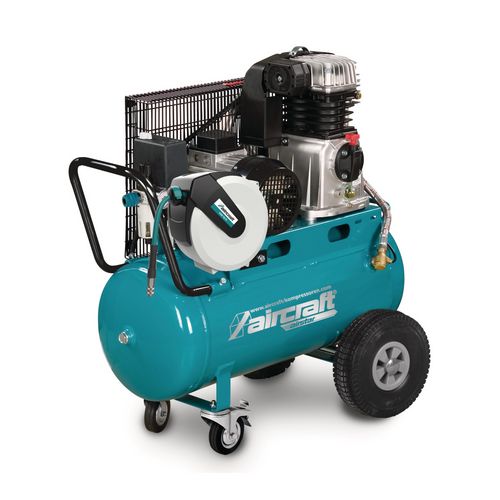

AIRSTAR 503/50 SAR
Mobile piston compressors with belt drive. High-quality equipment and attached hose reel
1.275,00
EUR excl. Tax / pc(s).
1.517,25 EUR incl. 19% Tax / pc(s).
1.517,25 EUR incl. 19% Tax / pc(s).
Promotional price *
1.159,00 EUR excl. Tax / pc(s).1.379,21 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2026 in Germany.
Art.-No. 2009530SAR
Are you interested in this product?
Put a request
Find Trader
Productdetails

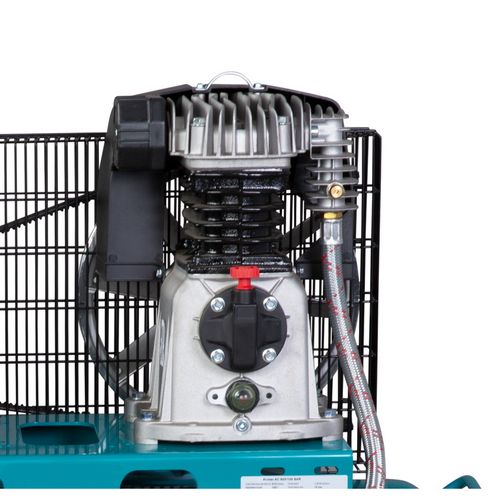

- Two-cylinder high-performance units made of gray cast iron for a long service life
- Large fan wheel and a cooling air baffle on the cylinder for optimum cooling of the compressor
- Quality electric motor with high starting torque
- Electric motor equipped with motor protection switch
- Aftercooler with cooling fins ensures a low tank inlet temperature and thus less moisture in the compressed air
- Sturdy metal belt guard
- 400 volt models with phase inverter as standard for easy manual reversal of the direction of rotation
- Compressed air tank equipped with safety valve, tank pressure gauge and condensate drain valve
- Including all safety devices
- Completely ready for connection

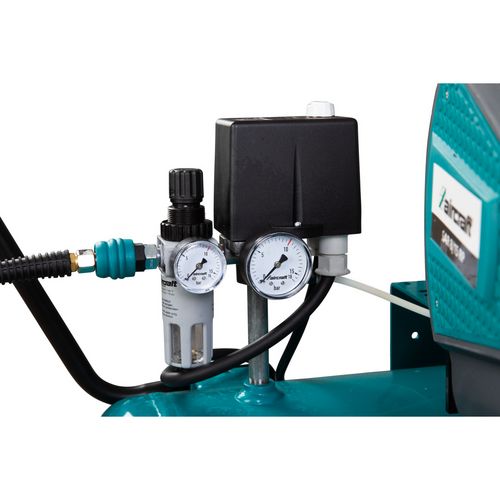

- Filter pressure regulator with one pressure gauge for regulated compressed air cleaned of condensate, dirt and oil, second pressure gauge for tank pressure
- Ten-year guarantee against rusting through on powder-coated compressed air tanks
- Includes high-quality one composite safety coupling and high-quality CONDOR pressure switch
- Flexible armored hose line with heat protection for long service life without vibration breakage
- Ergonomic handle, rubber handle and transport handle on the compressed air tank for convenient transportation

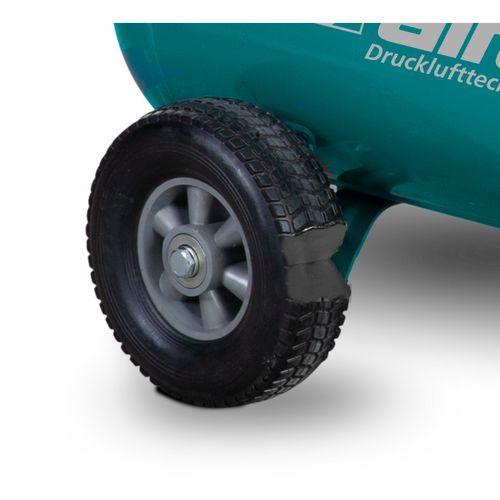

- Sturdy steering chassis with parking brake in combination with large, puncture-proof wheels for comfortable transportation
You will receive the 3-year Stürmer warranty for this item when you register online.
- Two-cylinder high-performance units made of gray cast iron for a long service life
- Aftercooler with cooling fins ensures a low tank inlet temperature and thus less moisture in the compressed air
- Ten-year guarantee against rusting through on powder-coated compressed air tanks
| Compressed air tank | |
|---|---|
| Maximum pressure | 10 bar |
| Pressure vessel capacity | 50 l |
| Tank surface | Powder-coated |
| Compressor | |
|---|---|
| Compressor system | HOS |
| Oil-free / oil-lubricated | Oil lubricated |
| Suction capacity approx. | 510 l/min |
| Filling capacity approx. | 400 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Number of cylinders | 2 |
| Number of compressor stages | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 860 mm |
| Width/depth approx. | 500 mm |
| Height approx. | 880 mm |
| Weight approx. | 68.2 kg |
| Electrical Data | |
|---|---|
| Motor output power | 3 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Whisper quiet | No |
| Sound power level Lw | 94 dB(A) |
| Explanation sound power level Lw | Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG) |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Hose reel SAR 8/10 RP Hose length 10 m, hose inner diameter 8 mm
| Pressure regulation | Quality filter pressure regulator |
| Automatic pressure switch | CONDOR |
| Drive transmission | V-belt |
| Material compressed air line | Flexible armored conduit with heat protection |
| Compressed air treatment | Filter pressure regulator |
| Condensate drain | Condensate drain valve |
| Compressed air outlet | A composite safety clutch |
| Pressure vessel | Powder-coated with a ten-year guarantee against rusting through |
| Compressor base | Two wheels with PU foam tires. two swivel castors with locking brake |
