| Effective delivery volume approx. | 705 l/min |
| Maximum Pressure | 10 bar |
| Air outlet | ½ " |
| VPE | 1 |

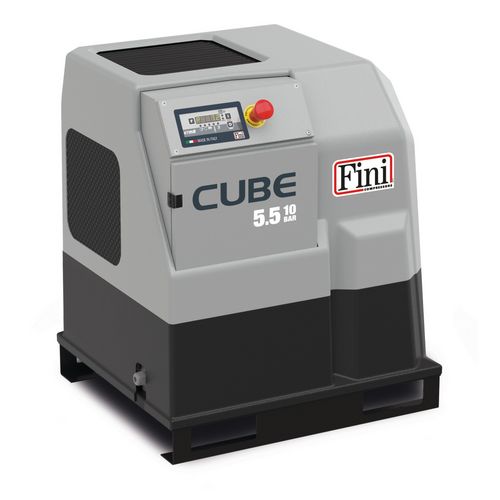

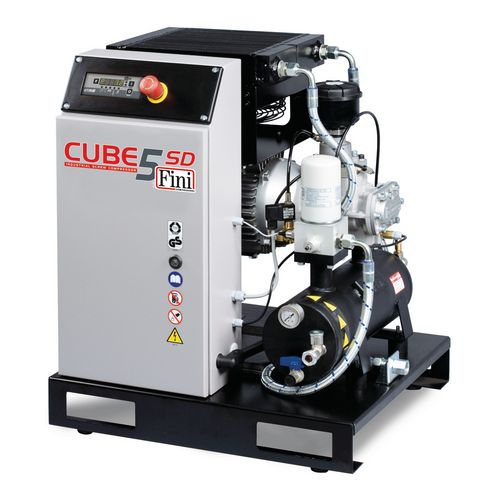

Screw compressor
CUBE SD 710 40050
Compact model with reliable, energy-saving direct transmission for continuous operation
4.699,00
EUR excl. Tax / pc(s).
5.591,81
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2948200
Are you interested in this product?
Put a request
Find Trader
Productdetails

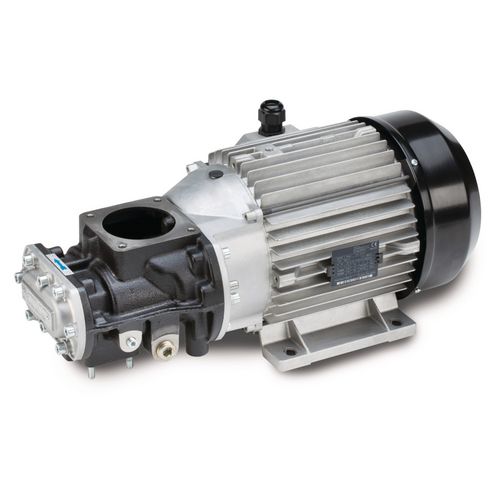

Coaxial screw compressor with maintenance-free drive and maximum energy efficiency in all pressure ranges. The low compressor speed and the low load on the bearings of the patented direct drive allow very long service lives.

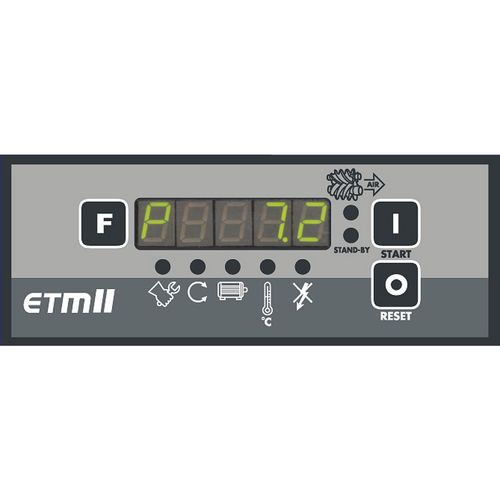

EasyTRONIC Micro II electronic control for reliability and efficiency- For prevention of motor overload, wear reduction and longer service life
- Monitoring of operating hours, temperature and overload of the motor
- Control of the motor's direction of rotation via phase sequence relays, thus avoiding possible damage during start-up or after a change of location
Optimized cooling system
- Low-noise radial fan guarantees optimum operating temperatures even under unfavorable operating conditions
- Thermostatically and electronically controlled fan and generously dimensioned heat exchanger result in longer service life and lower fluctuations in oil temperature
User-friendly in every detail
- Low noise level, suitable for installation in any working environment
- Small external dimensions, thus easy transport and installation
- Easy to service due to optimum accessibility and simple disassembly and assembly of all components requiring maintenance
- All air and oil pipes made of heat-resistant rubber
- Star-delta connection as standard
- Ready for connection with all fittings

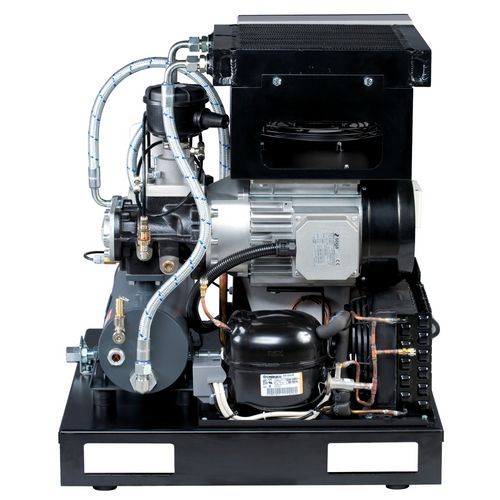

Integrated refrigerant dryer on ES models
- Increased reliability of the compressed air system without costly downtime and production delays while ensuring product quality
- Fully integrated into the housing
- Ready to use without installation effort
- Equipped with control panel and timed steam trap
- Maintenance-free direct drive
- Low space requirements and energy costs
- Low noise level
- Generously dimensioned cooler
- Easy installation and accessibility of all maintenance positions
| Dimensions and weights | |
|---|---|
| Length approx. | 650 mm |
| Width/depth approx. | 580 mm |
| Height approx. | 800 mm |
| Weight approx. | 103 kg |
| Electrical Data | |
|---|---|
| Absorbed power electric motor | 5.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Speed | 2900 min¯¹ |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 68 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Control | Electronical |
| Compressed air treatment | Oil separator cartridge |
| Drive transmission | Direct coupling |
| Compressor type | FS 26TFC |
