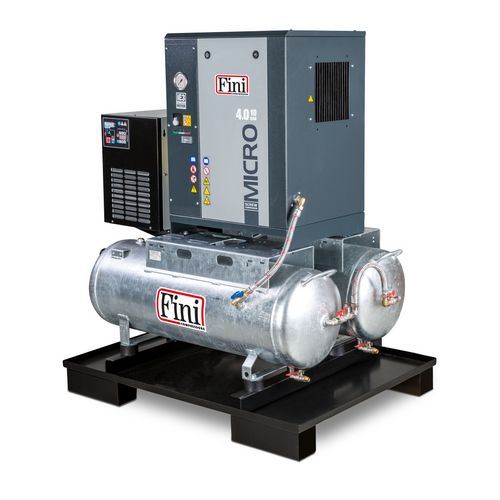

    Screw compressor

    DUO MICRO SE 4.0-08 2X100K

    4 kW version with ribbed belt drive on 2 x 100 liter boilers on a safety stand pallet

    8.250,00 EUR excl. Tax / pc(s).
    9.817,50 EUR incl. 19% Tax / pc(s).
    Promotional price *
    6.099,00 EUR excl. Tax / pc(s).
    7.257,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2024 in Germany.

    Art.-No. 2951662

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Start-stop operation via pressure switch, thus energy saving compared to no-load control
    • Minimal and easy maintenance
    • Ready for connection with all fittings
    • Fifteen-year warranty against rusting through on inside and outside hot-dip galvanized compressed air tank
    • Increased flexibility due to two tanks: by connecting the second compressed air tank, the tank volume is doubled, allowing a higher air supply to be built up. Increased air demand can thus be covered at short notice.
    • Second compressed air tank can be disconnected from the compressed air supply, e.g. for chisel or sandblasting work. This halves the container volume and the pressure is built up more quickly.



    Effective delivery volume approx.580 l/min
    Maximum Pressure8 bar
    Air outlet½ "
    VPE1
    Compressed air tank
    Pressure vessel capacity2 x 100 l
    Dimensions and weights
    Length approx.1250 mm
    Width/depth approx.950 mm
    Height approx.1430 mm
    Weight approx.221 kg
    Electrical Data
    Absorbed power electric motor4,0 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Motor(s)
    Motor typeElectrical
    Noise emission
    Sound pressure level Lp61 dB(A)
    Explanation sound pressure level LpSound pressure level at 1 m distance according to DIN 45635 T 13
    Unit: pc(s).
    Packaging unit: 1

    • Shock mounts
    • Safety pedestal range
    • refrigeration dryer
    • fine filter



    Compressed air tankHot-dip galvanised inside and out
    Drive transmissionRibbed belt

    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
