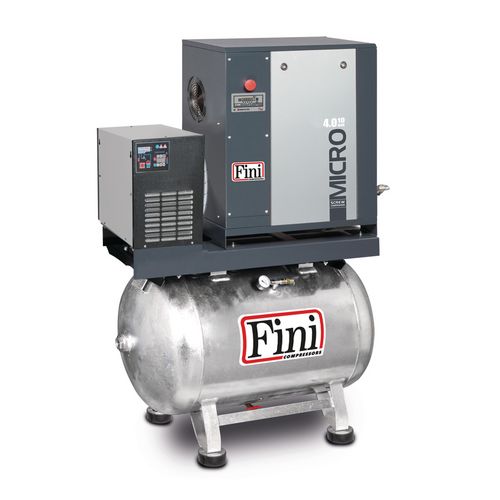

    Screw compressor

    MICRO 4.0-10-200 K

    With ribbed belt drive in soundproof housing. For continuous operation even with smaller air requirements.

    8.250,00 EUR excl. Tax / pc(s).
    9.817,50 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 2951654-S

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Space-saving single compressor with ribbed belt drive
    • With control ETM II including direction of rotation control
    • Especially suitable for companies that have a continuous air requirement, but want a compact unit with a reduced noise level and low operating costs
    • Standard supersonic insulation allows installation in sensitive rooms
    • Intensive cooling warrantys operational safety and good air quality
    • Standard with star-delta connection
    • Ideal also suitable for supplementing existing systems, eg for covering the compressed air base load
    • Standard with thermal motor protection, oil temperature monitoring (max 110 °C) and operating hours counter, ensuring high operational safety
    • Service-friendly due to optimal accessibility and easy disassembly and assembly of all important components
    • Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank

    Room amenities

    • Intensive cooling warrantys operational safety and good air quality

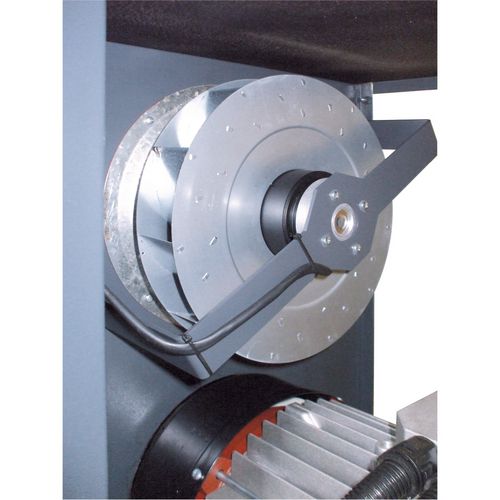

    • Fan works very quiet due to the design

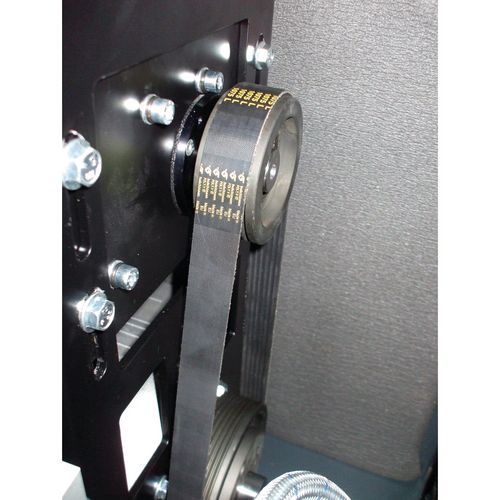

    • High-quality ribbed belt ensures optimum power transmission from motor to compressor while maintaining a long service life



    Effective delivery volume approx.485 l/min
    Maximum Pressure10 bar
    Air outlet½ "
    VPE1
    Compressed air tank
    Pressure vessel capacity200 l
    Dimensions and weights
    Length approx.1440 mm
    Width/depth approx.510 mm
    Height approx.1280 mm
    Weight approx.181 kg
    Electrical Data
    Absorbed power electric motor4 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Motor(s)
    Motor typeElectrical
    Noise emission
    Sound pressure level Lp60 dB(A)
    Explanation sound pressure level LpSound pressure level at 1 m distance according to DIN 45635 T 13
    Unit: pc(s).
    Packaging unit: 1







    Compressed air tankHot-dip galvanised inside and out
    Drive transmissionRibbed belt
