| Effective delivery volume approx. | 1500 l/min |
| Maximum Pressure | 10 bar |
| Air outlet | ¾ " |
| VPE | 1 |

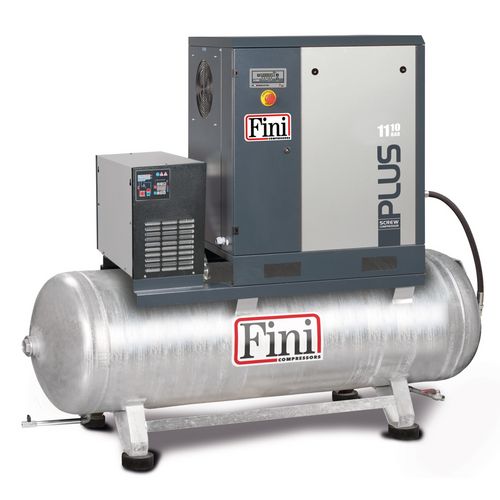

Screw compressor
PLUS 11-10-500 K
Belt drives for continuous operation and 100% utilization - designed for maximum operational reliability.
11.450,00
EUR excl. Tax / pc(s).
13.625,50 EUR incl. 19% Tax / pc(s).
13.625,50 EUR incl. 19% Tax / pc(s).
Promotional price *
8.229,00 EUR excl. Tax / pc(s).9.792,51 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Art.-No. 2952474
Are you interested in this product?
Put a request
Find Trader
Productdetails
- EasyTRONIC MICRO II electronic control with pressure sensor operation as standard, thus preventing motor overload, reducing wear and extending service life
- With star-delta switch
- High cooling effect and lower noise level due to thermostatically controlled radial fan
- Operating hours counter records load and overrun times, thus ensuring compliance with maintenance intervals - Indication of maintenance requirement via automatic message
- Rotation direction control for the motor avoids possible damage during commissioning or after a change of location
- Screw compressor with wear-resistant Poly V ribbed belt drive and slide clamping system
- Easy maintenance due to easily accessible elements
- Optimum operating temperatures due to thermostatically controlled fan, optimum cooling air flow and generously dimensioned heat exchanger, thus longer service life, lower fluctuations in oil temperature than with thermostat control
- Aftercooler as standard, thus less effort for drying and filtration of the generated compressed air
- Small external dimensions, thus easy transport and installation
- Fifteen-year warranty against rusting through on the inside and outside of hot-dip galvanized compressed air tanks
| Compressed air tank | |
|---|---|
| Pressure vessel capacity | 500 l |
| Dimensions and weights | |
|---|---|
| Length approx. | 1980 mm |
| Width/depth approx. | 700 mm |
| Height approx. | 1630 mm |
| Weight approx. | 395 kg |
| Electrical Data | |
|---|---|
| Absorbed power electric motor | 11 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 69 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Compressed air tank | Hot-dip galvanised inside and out |
| Drive transmission | Ribbed belt |
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
