| Effective delivery volume approx. | 2050 l/min |
| Maximum Pressure | 10 bar |
| Air outlet | ¾ " |
| VPE | 1 |

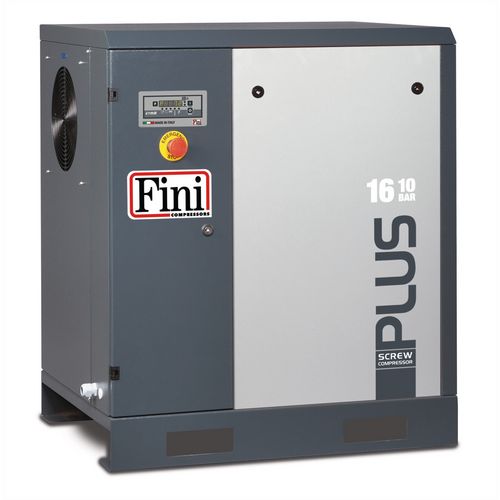

Screw compressor
PLUS 16-10
for 100% capacity utilization - designed for maximum operational reliability.
7.625,00
EUR excl. Tax / pc(s).
9.073,75
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2952804
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Standard with star-delta switch

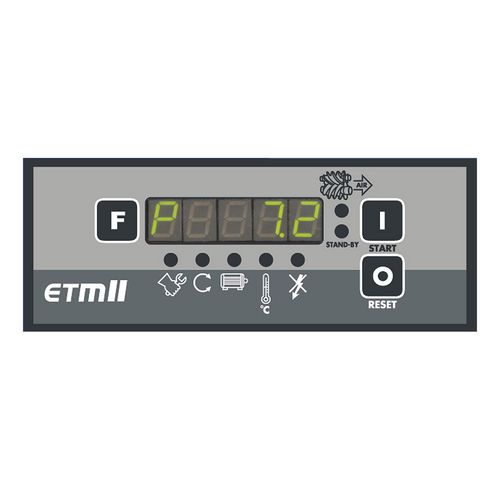

- As standard with EasyTRONIC MICRO II electronic control system with pressure sensor operation, thereby preventing engine overload, reducing wear and extending service life

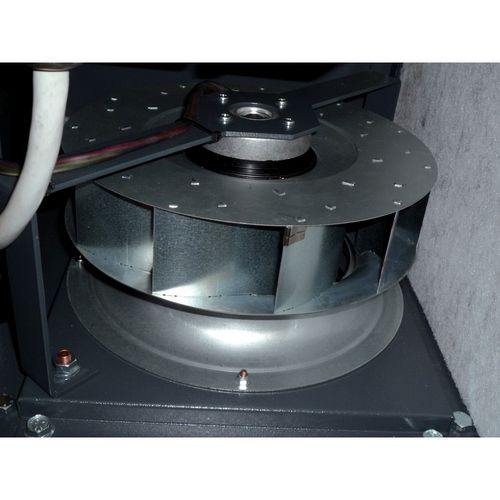

- High cooling effect and lower noise level due to thermostatically controlled centrifugal fan
- With operating hours counter, which records load and follow-up times, thus ensuring adherence to the maintenance intervals - display of the maintenance requirement via automatic message
- As standard with rotation direction control for the motor, thereby avoiding possible damage during commissioning or after a change of location
- Standard with star-delta connection
- Easy maintenance thanks to easily accessible elements
- Optimum operating temperatures due to thermostatically controlled fan, optimum cooling air flow and generously dimensioned heat exchangers, thus longer service life, lower fluctuations of the oil temperature than with thermostat control
- Standard with aftercooler, thus less effort for drying and filtration of the generated compressed air
- Small outside dimensions, therefore easy transport and installation
Equipment details

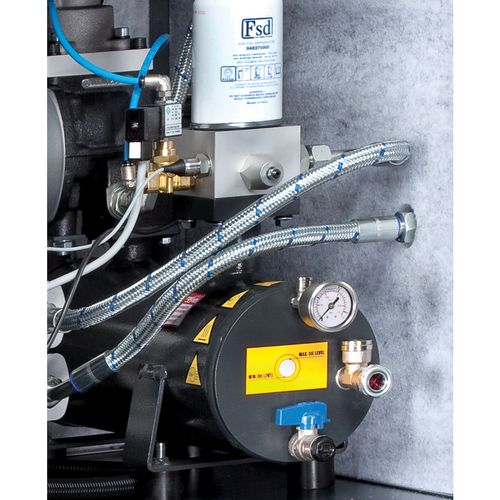

- All oil lines are rubber hoses with a steel braid sheathing
- This ensures maximum safety even at high temperatures
- High cooling effect and lower noise level due to thermostatically controlled centrifugal fan

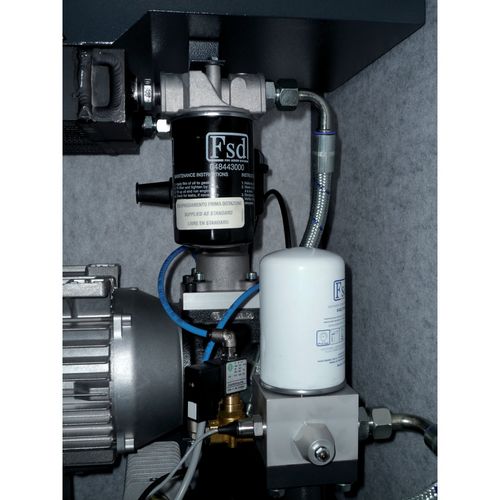

- Oil filter and oil separator cartridge are screw-on and easily accessible via the front panel
| Dimensions and weights | |
|---|---|
| Length approx. | 800 mm |
| Width/depth approx. | 650 mm |
| Height approx. | 980 mm |
| Weight approx. | 241 kg |
| Electrical Data | |
|---|---|
| Absorbed power electric motor | 15 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 68 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Drive transmission | Ribbed belt |
