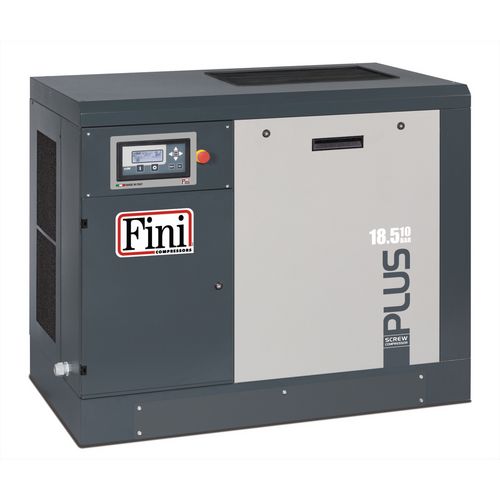

Screw compressor with ribbed belt drive (floor installation)
PLUS 18.5-10
for 100% capacity utilization - designed for maximum operational reliability.
13.200,00
EUR excl. Tax / pc(s).
15.708,00
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2953204
Are you interested in this product?
Put a request
Find Trader
Productdetails

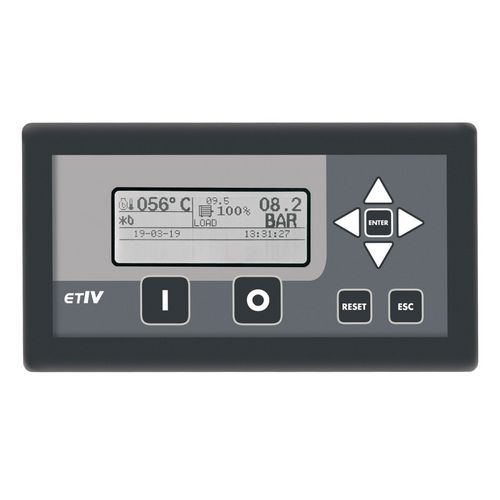

- EasyTRONIC MICRO II electronic control with pressure sensor operation as standard, thus preventing motor overload, reducing wear and extending service life
- With star-delta switch
- High cooling effect and lower noise level due to thermostatically controlled radial fan
- Operating hours counter records load and overrun times, thus ensuring compliance with maintenance intervals - Indication of maintenance requirements via automatic message
- Rotation direction control for the motor avoids possible damage during commissioning or after a change of location
- Screw compressor with wear-resistant Poly V ribbed belt drive and slide clamping system
- Easy maintenance due to easily accessible elements
- Optimum operating temperatures due to thermostatically controlled fan, optimum cooling air flow and generously dimensioned heat exchanger, thus longer service life, lower fluctuations in oil temperature than with thermostat control
- Aftercooler as standard, thus less effort for drying and filtration of the generated compressed air
- Small external dimensions, thus easy transport and installation
You will receive the 3-year Stürmer warranty for this item when you register online.
| Effective delivery volume approx. | 2500 l/min |
| Maximum Pressure | 10 bar |
| Air outlet | 1 " |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 1350 mm |
| Width/depth approx. | 800 mm |
| Height approx. | 1130 mm |
| Weight approx. | 350 kg |
| Electrical Data | |
|---|---|
| Motor power (input power) electric motor | 18.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 66 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
| Product information EU 2023/2854 | |
|---|---|
| Type of the generated data | Usage data |
| Format of the generated data | Common, machine-readable formats such as JSON |
| Amount of data | Up to 5 MB |
| Continuous data generation in real time | Yes |
| Data storage location | On the device |
| Data access | On the device |
| Further information | In the operating instructions or at info@stuermer-maschinen.de |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Drive transmission | Ribbed belt |
