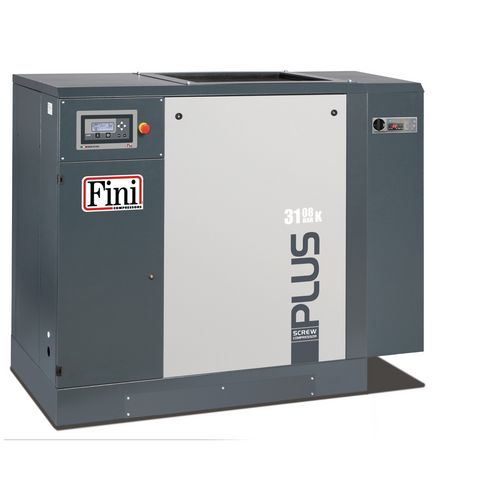

    Productimage for PLUS 31-08 K
    Brandimage to Product PLUS 31-08 K

    Screw compressor

    PLUS 31-08 K

    Soundproofed from 30 to 75 kW

    23.650,00 EUR excl. Tax / pc(s).
    28.143,50 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 2953642

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • All main components of the compressor are manufactured by machining using numerically controlled machine tools, including suction regulator, separator block and minimum pressure valve
    • The cooling takes place via a temperature-controlled centrifugal fan and an oversized combination cooler. This ensures optimal cooling even under the most extreme conditions.
    • Generous access panels allow easy maintenance and immediate control of the internal components, reducing the time required for inspection and maintenance to one medium.
    • The main operating parameters are monitored by the electronic microprocessor control NRG: In addition to the various functions, a weekly timer for switching on and off is available to meet the requirements of each customer. In addition, up to 4 machines can be controlled simultaneously according to the master / slave principle.
    • Standard with star-delta connection

    Energy savings through frequency-controlled compressors

    • Today, reducing energy consumption has become a global challenge given its impact on the environment.
    • One of the biggest challenges of our time is to reduce energy consumption and protect our precious energy resources.
    • The A-PLUS 22, 37, 55 and 75kW range is also available in a speed control version that combines high performance with energy saving solutions.

    Room amenities:

    Minimum pressure valve

    • Made of oxidation-resistant material
    • Great care in manufacturing ensures safe operation even under the most extreme conditions

    Prefilter panel

    • The cabin is equipped with a pre-filter plate, which retains the dusts and ensures that the inside of the machine is kept clean.



    Effective delivery volume approx.4 – 700 l/min
    Maximum Pressure8 bar
    Air outlet1 ¼ "
    VPE1
    Dimensions and weights
    Length approx.1530 mm
    Width/depth approx.830 mm
    Height approx.1440 mm
    Weight approx.710 kg
    Electrical Data
    Absorbed power electric motor30 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Motor(s)
    Motor typeElectrical
    Noise emission
    Sound pressure level Lp70 dB(A)
    Explanation sound pressure level LpSound pressure level at 1 m distance according to DIN 45635 T 13
    Unit: pc(s).
    Packaging unit: 1







    Drive transmissionRibbed belt

    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
