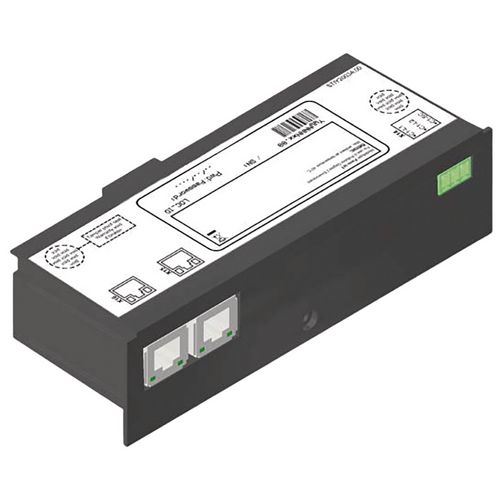

Service Management Device
SMS 2.0 CPL
SMS 2.0 is an innovative device for remote monitoring and preventive maintenance of a screw compressor via a LAN connection
360,00
EUR excl. Tax / pc(s).
428,40
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2099993
Are you interested in this product?
Put a request
Find Trader
Productdetails
The SMS device is connected directly to the login control without any intervention in the control cabinet. Remote access can be controlled via RJ45 Ethernet.
Via the web interface, the user can switch the device on and off remotely, access the various menu levels (Health, Performance, Custom, Events, Remote Messages) and check the status of the compressor online: hours remaining until maintenance, hours worked and all active and logged alarms.
SMS 2.0 only supports the following languages, which can be set via the associated "Login" controller: English, Czech, French, German, Italian, Russian
| Operating temperature | 0 55 °C |
| Inputs | 2 x Ethernet RJ45 connection (X15 - X16) |
| Outputs | 1 x RS485 connection (X14) |
| Connections | 1 - 3pos, p=0.15", 90 deg n. 2 Ethernet RJ45 socket n. 1 OEM Login-SMS 2.0 connection |
| Power consumption max. | 13 VA |
| Protection class | IP20 |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 150 mm |
| Width/depth approx. | 59 mm |
| Height approx. | 38 mm |
| Weight approx. | 115 g |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
