| Oil-free / oil-lubricated | Oil lubricated |
Screw compressor
A-K-MAX

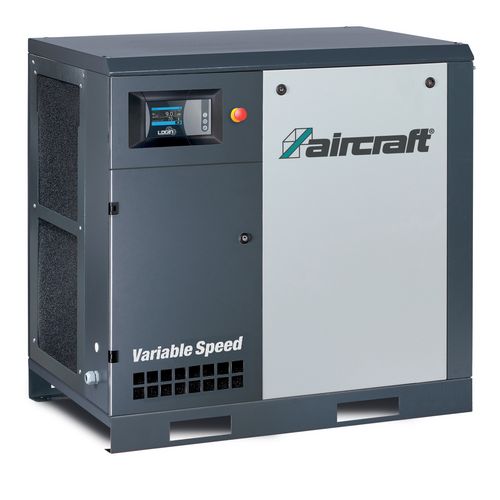

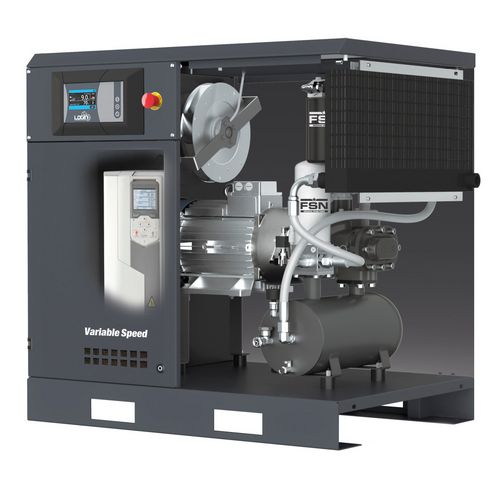

Compact screw compressor with variable speed control and innovative LOGIN control system
From
7.395,00
EUR excl. Tax / pc(s).
From 8.800,05 EUR incl. 19% Tax / pc(s).
From 8.800,05 EUR incl. 19% Tax / pc(s).
Promotional price *
From 6.139,00 EUR excl. Tax / pc(s).From 7.305,41 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Noise emission | Compressed air tank | Price | Promotional price * | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Effective delivery quantity of up to approx. (l/min) | Maximum Pressure (bar) | Air outlet | VPE | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Motor power (input power) electric motor (kW) | Sound pressure level Lp (dB(A)) | Pressure vessel capacity | EUR excl. Tax | EUR incl. 19% Tax | EUR excl. Tax | EUR incl. 19% Tax | |
| A-K-MAX 7,5-08 VS (IE3) | 2095502.2 | 600 1300 | 8 | 1/2 | 1 | 830 | 680 | 850 | 172 | 7,5 | 63 | 6.139,00 | 7.305,41 | ||||
| A-K-MAX 7,5-10 VS (IE3) | 2095504.2 | 500 1100 | 10 | 1/2 | 1 | 830 | 680 | 850 | 172 | 7,5 | 63 | 6.139,00 | 7.305,41 | ||||
| A-K-MAX 11-08 VS (IE3) | 2095702.2 | 680 1700 | 8 | 3/4 | 1 | 2000 | 730 | 1660 | 420 | 11 | 67 | 500 | 7.799,00 | 9.280,81 | |||
| A-K-MAX 11-10 VS (IE3) | 2095704.2 | 620 1580 | 10 | 3/4 | 1 | 2000 | 730 | 1660 | 420 | 11 | 67 | 500 | 7.849,00 | 9.340,31 | |||
| A-K-MAX 15-08 VS (IE3) | 2095902.2 | 950 2500 | 8 | 3/4 | 1 | 1030 | 730 | 1000 | 263 | 15 | 67 | 8.529,00 | 10.149,51 | ||||
| A-K-MAX 15-10 VS (IE3) | 2095904.2 | 840 2100 | 10 | 3/4 | 1 | 1030 | 730 | 1000 | 263 | 15 | 67 | 8.529,00 | 10.149,51 | ||||
Select Attributes
General
- Effective delivery quantity of up to approx.
- Maximum Pressure
- Air outlet
- VPE
Dimensions and weights
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Electrical Data
- Motor power (input power) electric motor
Noise emission
- Sound pressure level Lp
Compressed air tank
- Pressure vessel capacity
Price
- excl. Tax
- incl. 19% Tax
Promotional price
- excl. Tax
- incl. 19% Tax
Productdetails

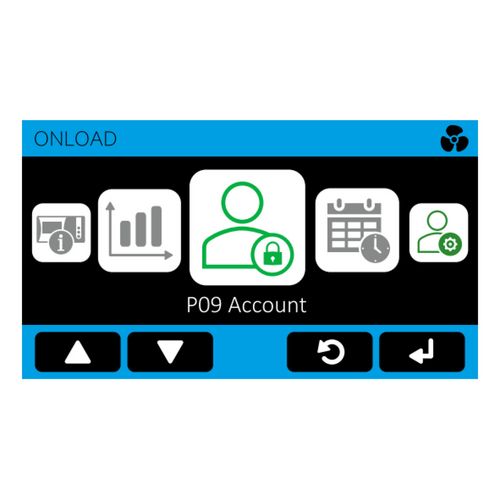

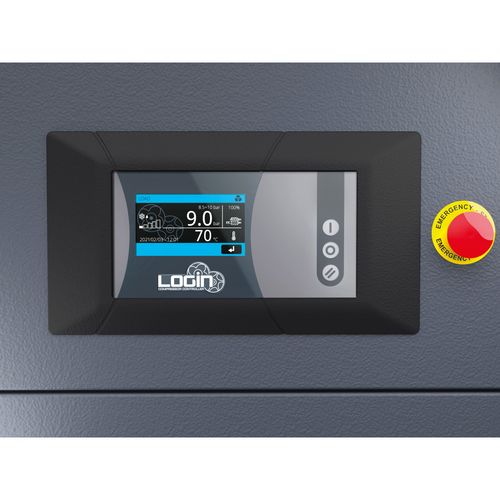

- Innovative LOGIN control with 4.3" touch screen for easy operation and complete control over all functions
- Connection of up to eight compressors possible, no matter if with constant or variable speed
- All information on current operating status at a glance
- Rotation direction control for the motor, prevents damage during start-up or after a change of location
- Low noise emission (only max. 67 dB) during operation, due to extremely low speed of the screw compressor and use of a low-noise radial fan
- Optimum operating temperature and low fluctuation of oil temperature due to thermostatically controlled centrifugal fan, optimum cooling air flow and generously dimensioned heat exchangers
- Aftercooler reduces the effort for drying and filtration of the generated compressed air
- Service-friendly: easy removal and installation of all components requiring maintenance
Energy saving through frequency control
- Ideal for frequently changing compressed air consumption
- Compressor delivery rate adjusts to actual consumption
- Electronic control monitors motor and compressor speed and keeps line pressure constant even when consumption fluctuates widely
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
