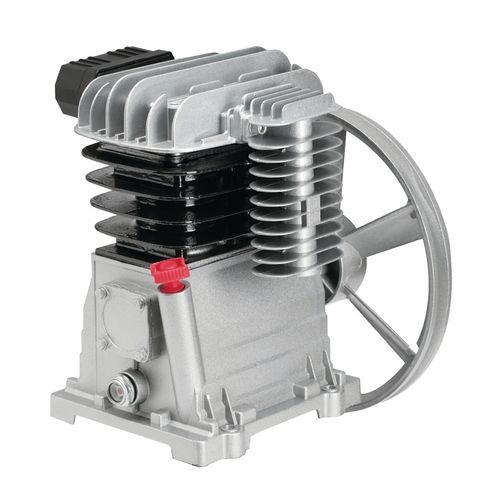

Compressor
3008L
175,00
EUR excl. Tax / pc(s).
208,25
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2501810
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Cylinders and cylinder heads with long ribs for optimum heat dissipation;
- carefully balanced crankshaft made of cast iron for better concentricity
- Stainless steel valves with high air flow
- Pulley designed as a fan
- Optimized airflow, high fan performance
- Highly efficient air filter with labyrinth intake channel for noise reduction
| Type | Single-stage |
| Maximum pressure | 10 bar |
| Number of cylinders | 2 |
| Number of compressor stages | 1 |
| Suction capacity approx. | 322 l/min |
| Filling capacity approx. | 193 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Speed | 2850 min¯¹ |
| Drive transmission | V-belt |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 278 mm |
| Width/depth approx. | 263 mm |
| Height approx. | 281 mm |
| Weight approx. | 9.9 kg |
| Electrical Data | |
|---|---|
| Delivery power | 1.1 |
| Noise emission | |
|---|---|
| Sound power level Lw | 97 dB(A) |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Intermediate cooler | ✔ |
| Cylinder made of cast iron | ✔ |
| Forced ventilation | ✔ |
