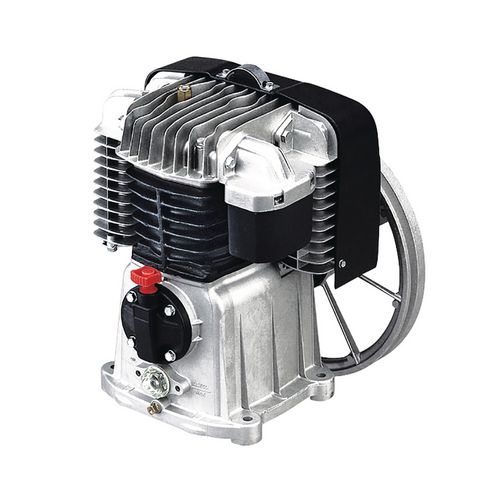

Productdetails
- Cylinders and cylinder heads with long ribs for optimum heat dissipation;
- carefully balanced crankshaft made of cast iron for better concentricity
- Stainless steel valves with high air flow
- Pulley designed as a fan
- Optimized airflow, high fan performance
- Highly efficient air filter with labyrinth intake channel for noise reduction
Type | Two-stage with parallel cylinder |
Maximum pressure | 10 bar |
Number of cylinders | 2 |
Suction capacity approx. | 430 l/min |
Filling capacity approx. | 374 l/min |
Explanation filling capacity | at 6 bar working pressure |
Speed | 1310 min¯¹ |
Drive transmission | V-belt |
VPE | 1 |
Dimensions and weights |
---|
Length approx. | 305 mm |
Width/depth approx. | 312 mm |
Height approx. | 377 mm |
Weight approx. | 19.6 kg |
Electrical Data |
---|
Delivery power | 3 kW |
Duty type drive motor | S1 |
Noise emission |
---|
Sound pressure level Lp | 78 dB(A) |
Unit: pc(s).
Packaging unit: 1
Aftercooler | ✔ |
Intermediate cooler | ✔ |
Air inlet channel | ✔ |
Cylinder made of cast iron | ✔ |
Forced ventilation | ✔ |
