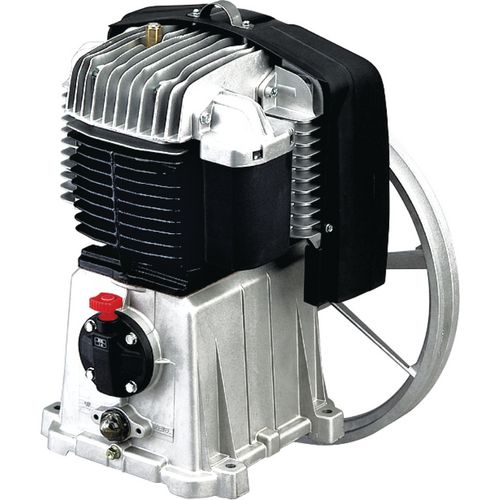

BK 119

Oil lubricated, V-belt driven compressor unit

1.091,00 EUR excl. Tax / pc(s).
1.298,29 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 2501319

Are you interested in this product?

Put a request

Find Trader

Productdetails

Cylinders and cylinder heads with long ribs for optimum heat dissipation;
carefully balanced crankshaft made of cast iron for better concentricity
Stainless steel valves with high air flow
Pulley designed as a fan
Optimized airflow, high fan performance
Highly efficient air filter with labyrinth intake channel for noise reduction

Type	Two-stage with parallel cylinder
Maximum pressure	10 bar
Number of cylinders	2
Suction capacity approx.	840 l/min
Filling capacity approx.	712 l/min
Explanation filling capacity	at 6 bar working pressure
Speed	1250 min¯¹
Drive transmission	V-belt
VPE	1

Dimensions and weights
Length approx.	356.5 mm
Width/depth approx.	402 mm
Height approx.	465 mm
Weight approx.	34 kg

Electrical Data
Delivery power	5.5 kW
Duty type drive motor	S1


Sicherheits- und Warnhinweise
Safety and warning notices

Unit: pc(s).
Packaging unit: 1

Aftercooler	✔
Intermediate cooler	✔
Air inlet channel	✔
Cylinder made of cast iron	✔
Forced ventilation	✔
