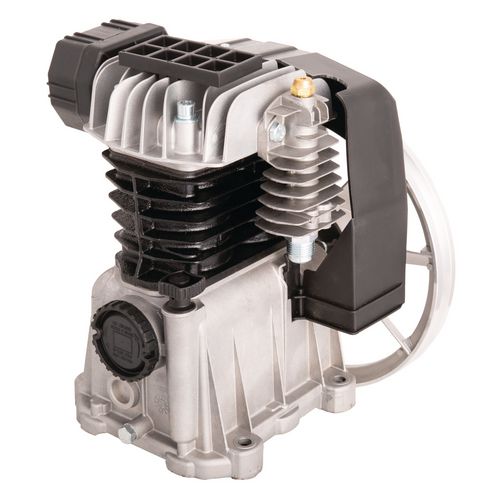

Compressor
MK 103
Oil lubricated, V-belt driven compressor unit
315,00
EUR excl. Tax / pc(s).
374,85
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2501303
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Cylinders and cylinder heads with long ribs for optimum heat dissipation;
- carefully balanced crankshaft made of cast iron for better concentricity
- Stainless steel valves with high air flow
- Pulley designed as a fan
- Optimized airflow, high fan performance
- Highly efficient air filter with labyrinth intake channel for noise reduction
| Type | Single-stage |
| Maximum pressure | 10 bar |
| Number of cylinders | 2 |
| Suction capacity approx. | 365 l/min |
| Filling capacity approx. | 270 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Speed | 1370 min¯¹ |
| Drive transmission | V-belt |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 264.5 mm |
| Width/depth approx. | 258 mm |
| Height approx. | 293.5 mm |
| Weight approx. | 9,5 kg |
| Electrical Data | |
|---|---|
| Delivery power | 2.2 kW |
| Duty type drive motor | S1 |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 79 dB(A) |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Aftercooler | ✔ |
| Air inlet channel | ✔ |
| Cylinder made of cast iron | ✔ |
| Forced ventilation | ✔ |
| Start-up relief valve | ✔ |
