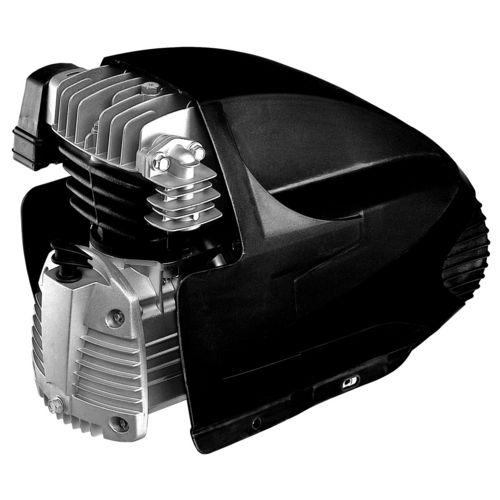

    Productimage for MK 265 - 2 M
    Brandimage to Product MK 265 - 2 M

    Compressor

    MK 265 - 2 M

    Oil lubricated coaxial compressor unit

    328,00 EUR excl. Tax / pc(s).
    390,32 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 2501411

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails



    Coaxial compressors work with the coaxial drive. Crankshaft and drive shaft are a component in this, which means:

    • Maximum mechanical efficiency
    • No more drive parts required
    • Reduction of moving components


    Features

    • Top-efficient cooling air flow
    • Special, ground valves made of stainless steel.



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    TypeSingle phase oil lubricated
    Maximum pressure10 bar
    Number of cylinders1
    Suction capacity approx.217 l/min
    Filling capacity approx.140 l/min
    Explanation filling capacityat 6 bar working pressure
    Speed2850 min¯¹
    Drive transmissionDirect-coupled
    VPE1
    Dimensions and weights
    Length approx.361 mm
    Width/depth approx.198 mm
    Height approx.275 mm
    Weight approx.13.3 kg
    Electrical Data
    Delivery power1.5 kW
    Duty type drive motorS1
    Supply voltage230 V
    Mains frequency50 Hz
    Noise emission
    Sound pressure level Lp76 dB(A)
    Unit: pc(s).
    Packaging unit: 1







    Aftercooler✔
    Cylinder made of cast iron✔
    Overload protection✔
