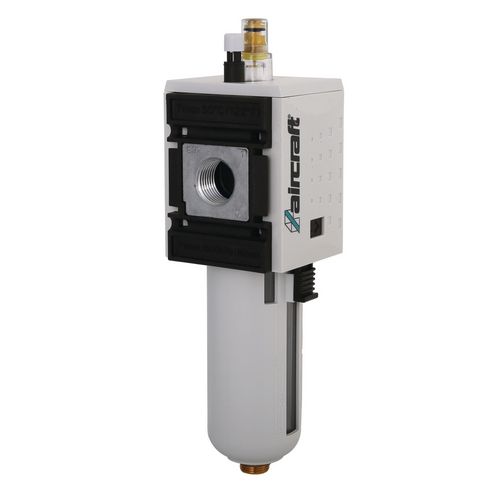

    Fog Lubricator

    1/2" 16 bar

    47,90 EUR excl. Tax / pc(s).
    57,00 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 2317220

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Normal oil lubricator with suction device under pressure
    • For pressure inlet max. 16 bar
    • Suitable for temperatures from -10 to +50°C
    • For vertical installation
    • Oil type CL 32 according to DIN 51517-ISO VG 32 - oil refill under pressure up to max. 10 bar possible



    • Normal oil lubricator with suction device under pressure
    • For pressure inlet max. 16 bar
    • Suitable for temperatures from -10 to +50°C
    • For vertical installation
    • Oil type CL 32 according to DIN 51517-ISO VG 32 - oil refill under pressure up to max. 10 bar possible



    Connecting thread1/2 "
    Max. operating pressure16 bar
    Max. inlet pressure16 bar
    Oil vessel volume120 cm³
    Operating temperature min.-10 °C
    Operating temperature max.+50 °C
    MediumCompressed air, neutral gases
    Drip attachmentPolycarbonat
    Oil typeCL 32 according to DIN 51517-ISO VG 32
    VPE1
    Dimensions and weights
    Length approx.63 mm
    Width/depth approx.67 mm
    Height approx.210 mm
    Weight approx.0.327 kg
    Unit: pc(s).
    Packaging unit: 1
