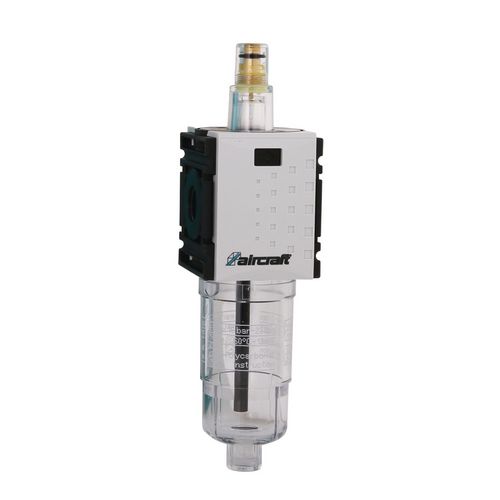

    Fog Lubricator

    1/4" 12 bar

    24,50 EUR excl. Tax / pc(s).
    29,16 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 2317200

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Micro oil lubricator
    • For compressed air and neutral gases
    • Inlet pressure max. 12 bar
    • Suitable for temperatures from -10 to +50°C
    • For vertical installation
    • Oil grade CL 32 according to DIN 51517-ISO VG 32
    • Oil refill under pressure not possible



    • Micro oil lubricator
    • For compressed air and neutral gases
    • Inlet pressure max. 12 bar
    • Suitable for temperatures from -10 to +50°C
    • For vertical installation
    • Oil grade CL 32 according to DIN 51517-ISO VG 32
    • Oil refill under pressure not possible



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Connecting thread1/4 "
    Max. operating pressure12 bar
    Max. inlet pressure12 bar
    Oil vessel volume35 cm³
    Operating temperature min.-10 °C
    Operating temperature max.+50 °C
    ContainerPolycarbonat
    Drip attachmentPolycarbonat
    Oil typeCL 32 according to DIN 51517-ISO VG 32
    VPE1
    Dimensions and weights
    Length approx.43 mm
    Width/depth approx.48 mm
    Height approx.156 mm
    Weight approx.0.1204 kg
    Unit: pc(s).
    Packaging unit: 1
