Productdetails

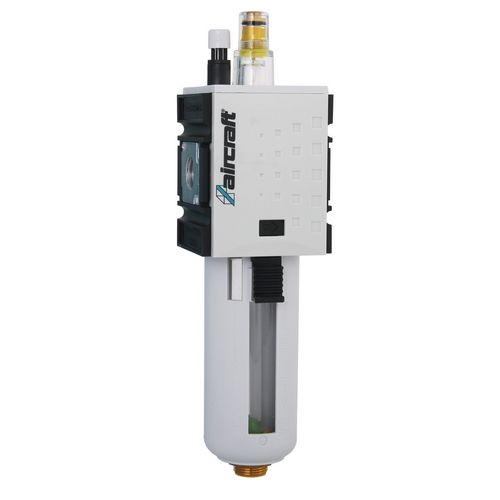

- Normal oil lubricator with suction device under pressure
- For pressure inlet max. 16 bar
- Suitable for temperatures from -10 to +50°C
- For vertical installation
- Oil type CL 32 according to DIN 51517-ISO VG 32 - oil refill under pressure up to max. 10 bar possible
- Normal oil lubricator with suction device under pressure
- For pressure inlet max. 16 bar
- Suitable for temperatures from -10 to +50°C
- For vertical installation
- Oil type CL 32 according to DIN 51517-ISO VG 32 - oil refill under pressure up to max. 10 bar possible
Connecting thread | 1/4 " |
Max. operating pressure | 16 bar |
Max. inlet pressure | 16 bar |
Oil vessel volume | 40 cm³ |
Operating temperature min. | -10 °C |
Operating temperature max. | +50 °C |
Medium | Compressed air, neutral gases |
Drip attachment | Polycarbonat |
Oil type | CL 32 according to DIN 51517-ISO VG 32 |
Connection pressure gauge | 1/4 " |
VPE | 1 |
Dimensions and weights |
---|
Length approx. | 52 mm |
Width/depth approx. | 54 mm |
Height approx. | 186 mm |
Weight approx. | 0.2206 kg |
Unit: pc(s).
Packaging unit: 1
