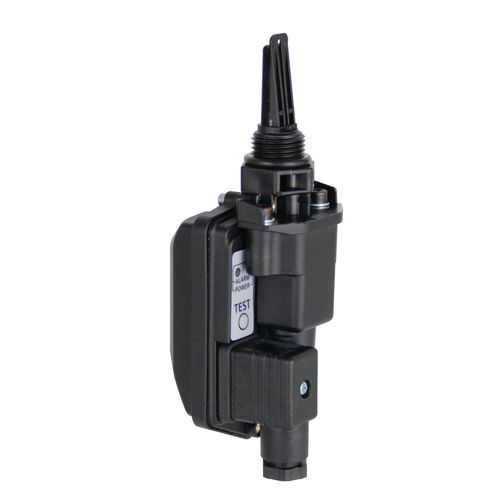

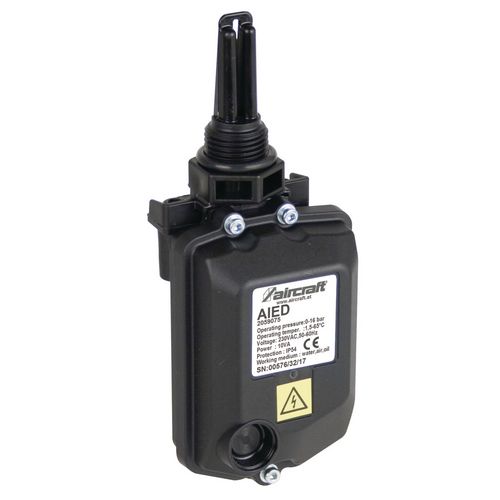

AIED

Reliable, autonomous removal of condensate

104,90 EUR excl. Tax / pc(s).
124,83 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 2059075

Are you interested in this product?

Put a request

Find Trader

Productdetails

Fully automatic removal of condensate and other non-aggressive fluids from filter housings
Collection reservoir collects condensate until it reaches the water level
Capacitive sensor initiates automatic draining of condensate without loss of air
LED indicator
test button

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Drain off quantity max. (short-term)	8 l/h
Explanation drain off quantity max.	at 7 bar
Compressor output	10 W
Filter performance	55 m³/min
Operating pressure	0 – 16 bar
Operating temperature	1.5 65 °C
IP degree of protection	IP54
Condensate feed	Parallel thread ½ "
Explanation operating temperature	Max. Operating temperature at 65 ° C, but if temperature is over 45 ° C, performance may be affected
Mode of operation	Automatically level-controlled
VPE	1

Dimensions and weights
Weight approx.	0.3 kg

Electrical Data
Supply voltage	230 V
Mains frequency	50/60 Hz

Unit: pc(s).
Packaging unit: 1
