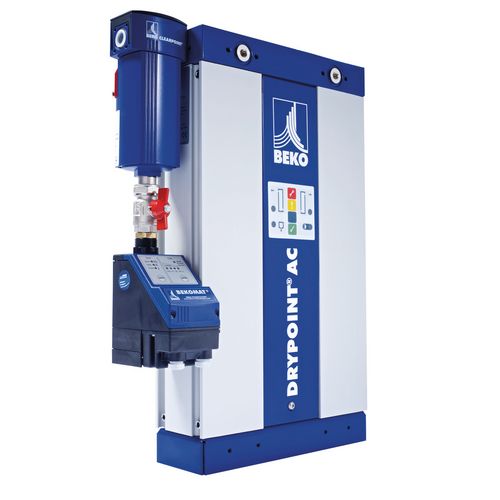

    Productimage for DRYPOINT AC 148 with pre-filter and BEKOMAT 20FM
    Brandimage to Product DRYPOINT AC 148 with pre-filter and BEKOMAT 20FM

    Cold regenerated adsorption dryer

    DRYPOINT AC 148 with pre-filter and BEKOMAT 20FM

    Economical, easy to service and flexible to install

    3.621,00 EUR excl. Tax / pc(s).
    4.308,99 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 2048212

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Very compact due to aluminum profiles, highly effective adsorbent and integrated dust filter
    • Prestressed adsorbent: this also makes horizontal operation possible and dryer insensitive to vibrations
    • Prestressed adsorbent: therefore horizontal operation possible and dryer insensitive to vibrations
    • Service and maintenance-friendly due to service display, desiccant cartridges, self-diagnosis, function display, PC interface
    • Energy-saving thanks to standard memory function (compressor synchronization control); Optional additional programming option for performance adjustment

    Features:

    Adsorbents in exchangeable cartridges

    • Dust filter elements integrated in exchangeable cartridges
    • Adsorbent in spring loaded cartridges
    • Adsorbent: molecular sieve

    Display with displays for:

    • Power supply
    • Valve function left / right
    • Prepare service (11,500 and 23,500 operating hours)
    • Service required (12,000 and 24,000 operating hours)
    • LED-coded error messages for the function of the solenoid valves and the electronics
    • steam traps in operation

    Electronic control:

    • broadband power supply for 100 - 240 VAC; 50 - 60 Hz, 12 - 24 VDC
    • processor with CPU, self-diagnosis
    • service reset
    • PC interface for program adaptation and error diagnosis, optional PC software
    • energy management; Energy saving through compressor synchronization
    • Potential-free fault signaling contact

    Filtration

    • CLEARPOINT micro filter at the dryer inlet
    • Dust filter integrated in exchangeable cartridges

    steam trap

    • Integrated steam trap (time-controlled solenoid valve) or alternatively: BEKOMAT 20 FM on the inlet filter



    Air flow m³/h42.5 m³/h
    Maximum pressure16 bar
    Air connectionG 3/8 "
    VPE1
    Dimensions and weights
    Length approx.281 mm
    Width/depth approx.92 mm
    Height approx.1065 mm
    Weight approx.24 kg
    Reference conditions as per DIN ISO 7183
    Pressure dew point tpd-40 °C
    Unit: pc(s).
    Packaging unit: 1
