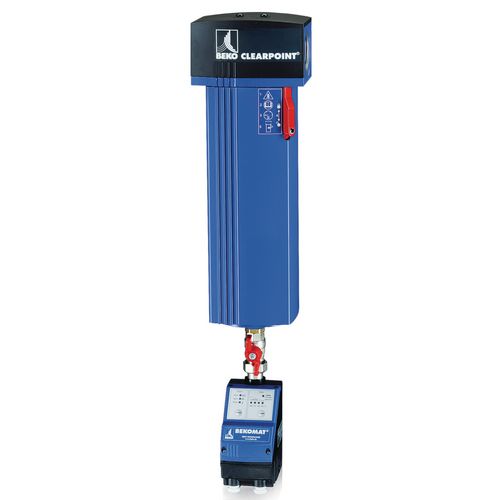

S075 WBB

570,90 EUR excl. Tax / pc(s).
679,37 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 2048002

Are you interested in this product?

Put a request

Find Trader

Productdetails

99% separation of the precipitated condensate directly after the compressor
For separating large amounts of condensate (water, oil) and dirt particles by centrifugal acceleration of the compressed air
Use on aftercoolers and refrigeration dryers
High quality corrosion protection through complete anodization
Low-flow housing made of seawater-resistant aluminum
Outside additionally powder-coated
Differential pressure < 0.06 bar
With BEKOMAT® steam trap

Volume flow m³/h	195 m³/h
Volume flow l/min	2500 l/min
Volume flow measured at operating pressure	7 bar
Max. operating pressure	16 bar
Air connection	3/4 "
VPE	1

Dimensions and weights
Width/depth approx.	100 mm
Height approx.	495 mm

Unit: pc(s).
Packaging unit: 1

If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
