    Oil-water separator

    WOS 35

    Patented separator for a variety of applications

    1.349,00 EUR excl. Tax / pc(s).
    1.605,31 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 2058255

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Thanks to patented technology, regular service is possible in only 30 seconds and without expensive cleaning
    • Wall and floor mounting possible
    • Works reliably with any steam trap
    • Suitable for all common compressor oils
    • Operating media: condensate (air, water, oil), non-aggressive, not suitable for emulsion
    • Quick and clean change of the filter cartridge
    • No settling tank necessary (no bacteria formation)
    • Easy installation due to compact design and small dimensions

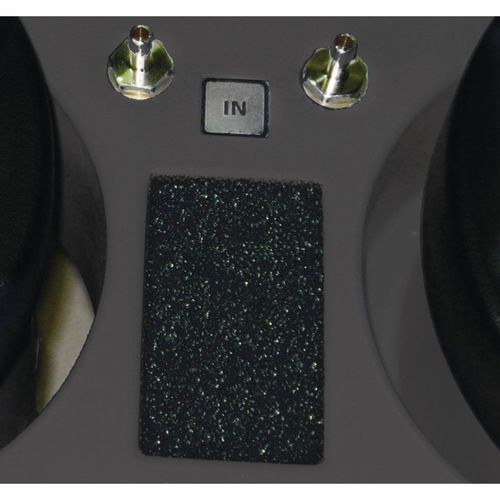

    • Connection via quick couplings


    Function Description:

    • Multi-stage oil-water separation via an oil-attracting filter and activated carbon
    • After the end of the service life of the filter element this is unscrewed and disposed of completely
    • Filter element is tightly closed with plastic cover, so that residual condensate can remain in it
    • Locked filter element can be disposed of according to current regulations


    service interval

    • after occurrence of one of the following three cases:
    • 4,000 operating hours of the compressor at compressor oil transfer of 2.5 mg / m3
    • Discoloration of the polypropylene medium - analysis by simple visual inspection
    • At the latest after 12 months (regardless of the operating hours of the compressor)



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Max. oil capacity 15°C 60% RH25400 G
    Max. oil capacity 25°C 60% RH21310 G
    Max. oil capacity 40°C 60% RH10790 G
    Max. condensate flow 15°C 60% RH19.8 l/h
    Max. condensate flow 25°C 60% RH29.8 l/h
    Max. condensate flow 40°C 60% RH55.6 l/h
    Residual oil content< 10 ppm
    Operating temperature1.5 – 65 °C
    VPE1
    Connection
    Condensate feed10 mm
    Dimensions and weights
    Length approx.960 mm
    Width/depth approx.386 mm
    Height approx.1137 mm
    Maximum compressor output
    Maximum compressor output35.5 m³/min
    Unit: pc(s).
    Packaging unit: 1
