| Max. oil capacity 15°C 60% RH | 2890 G |
| Max. oil capacity 25°C 60% RH | 2430 G |
| Max. oil capacity 40°C 60% RH | 1230 G |
| Max. condensate flow 15°C 60% RH | 2.3 l/h |
| Max. condensate flow 25°C 60% RH | 3.4 l/h |
| Max. condensate flow 40°C 60% RH | 6.3 l/h |
| Residual oil content | < 10 ppm |
| Operating temperature | 1.5 – 65 °C |
| VPE | 1 |

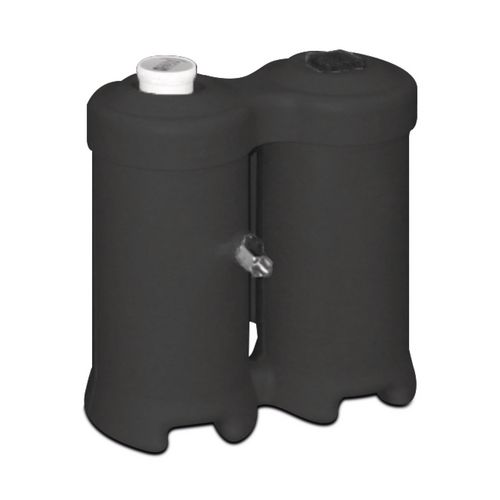

Oil-water separator
WOS 4
Patented separator for a variety of applications
420,00
EUR excl. Tax / pc(s).
499,80
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2058230
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Thanks to patented technology, regular service is possible in only 30 seconds and without expensive cleaning
- Wall and floor mounting possible
- Works reliably with any steam trap
- Suitable for all common compressor oils
- Operating media: condensate (air, water, oil), non-aggressive, not suitable for emulsion
- Quick and clean change of the filter cartridge
- No settling tank necessary (no bacteria formation)
- Easy installation due to compact design and small dimensions

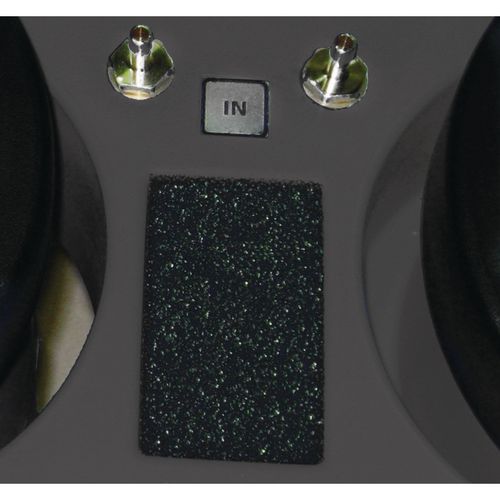

- Connection via quick couplings
Function Description:
- Multi-stage oil-water separation via an oil-attracting filter and activated carbon
- After the end of the service life of the filter element this is unscrewed and disposed of completely
- Filter element is tightly closed with plastic cover, so that residual condensate can remain in it
- Locked filter element can be disposed of according to current regulations
service interval
- after occurrence of one of the following three cases:
- 4,000 operating hours of the compressor at compressor oil transfer of 2.5 mg / m3
- Discoloration of the polypropylene medium - analysis by simple visual inspection
- At the latest after 12 months (regardless of the operating hours of the compressor)
| Connection | |
|---|---|

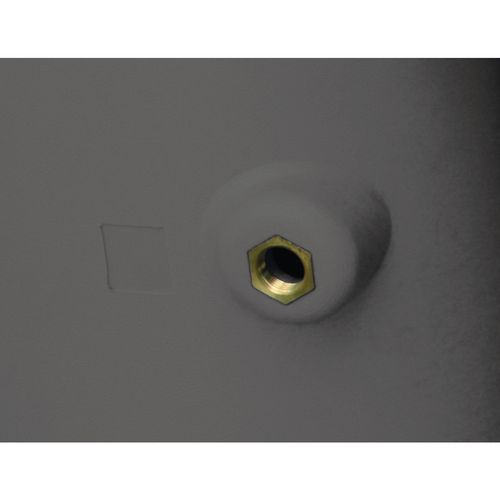

| Condensate feed | 10 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 416 mm |
| Width/depth approx. | 243 mm |
| Height approx. | 411 mm |
| Maximum compressor output | |
|---|---|
| Maximum compressor output | 4.04 m³/min |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
