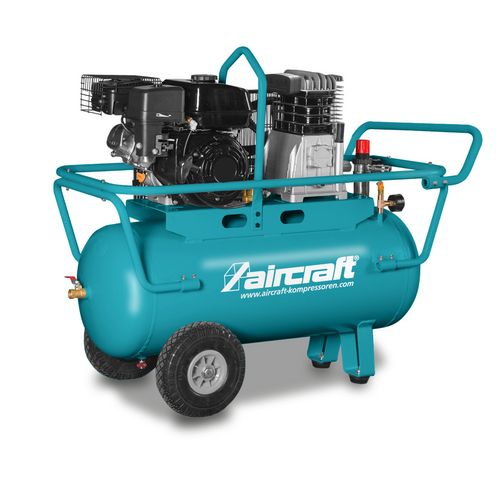

    Productimage for AIRBAU 480/100 B
    Brandimage to Product AIRBAU 480/100 B

    Piston compressor

    AIRBAU 480/100 B

    Combustion engine for operation independent of the power grid

    999,00 EUR excl. Tax / pc(s).
    1.188,81 EUR incl. 19% Tax / pc(s).
    Promotional price *
    949,00 EUR excl. Tax / pc(s).
    1.129,31 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 2004450

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Combustion engine for operation independent of the power grid
    • Pneumatic throttle control and idle speed control
    • The large, stable wheels ensure easy and comfortable transportation even on uneven ground
    • Roll bar for lifting with hoists or freight elevator
    • Tubular frame to protect the machine
    • Powerful and reliable
    • Ideal solution for applications where no power connection is available



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Air outlet vessel1/2 "
    VPE1
    Compressed air tank
    Maximum pressure10 bar
    Pressure vessel capacity100 l
    Tank vertical / horizontalProne
    Tank surfacePowder-coated
    Compressor
    Compressor systemHOS
    Oil-free / oil-lubricatedOil lubricated
    Suction capacity approx.480 l/min
    Filling capacity approx.340 l/min
    Explanation filling capacityat 7 bar
    Number of cylinders2
    Number of compressor stages1
    Piston stroke65 mm
    Diameter of piston58 mm
    Dimensions and weights
    Length approx.1063 mm
    Width/depth approx.502 mm
    Height approx.953 mm
    Weight approx.88 kg
    Electrical Data
    Drive motor1 cylinder / 4-stroke engine
    Delivery power4,1 kW
    Noise emission
    Whisper quietNo
    Sound power level Lw94 dB(A)
    Explanation sound power level LwSound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
    Unit: pc(s).
    Packaging unit: 1







    DruckregelungFilterdruckregler
    Automatischer DruckschalterCONDOR
    Werkstoff DruckluftleitungFlexible Panzerschlauchleitung mit Hitzeschutz
    DruckluftaufbereitungFilterdruckregler
    DruckluftentnahmeEine Einhand-Schnellkupplung
    KondensatableiterKugelhahn
    DruckluftbehälterPulverbeschichtet
    BehälterbasisZwei Räder, zwei Gummipuffer
