Brandimage to Product AIRBOY KITT 90

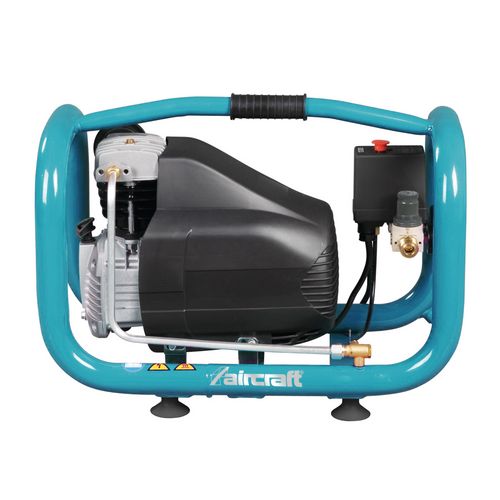

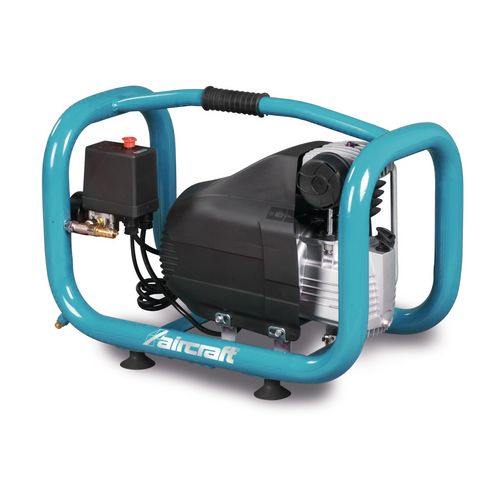

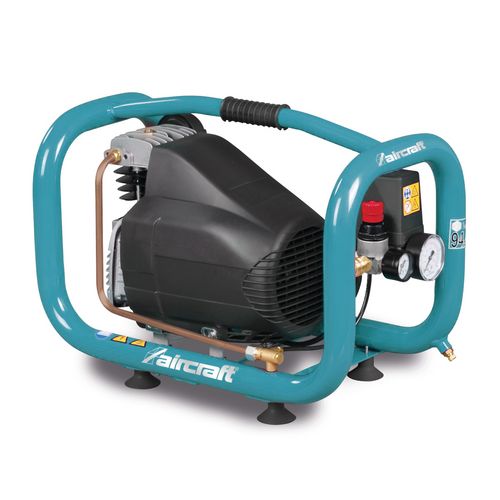

Piston compressor

AIRBOY KITT 90

Portable, for more flexibility in daily use

569,00 EUR excl. Tax / pc(s).
677,11 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 2001237

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • At low speed - thus reduced vibrations and increased service life of the compressor components
    • Quality electric motors with high starting torque
    • Equipped with motor start relief and motor protection switch
    • Fully automatic on/off operation
    • Switches and fittings are optimally protected by the tubular frame
    • Powder-coated compressed air tank with ten-year warranty against rusting through
    • Rubberized carrying handle to prevent slipping



    Compressed air tank
    Maximum pressure15 bar
    Pressure vessel capacity2.4 l
    Compressor
    Compressor systemHOS
    Suction capacity approx.85 l/min
    Filling capacity approx.49 l/min
    Explanation filling capacityat 6 bar working pressure
    Number of cylinders1
    Number of compressor stages1
    Dimensions and weights
    Length approx.510 mm
    Width/depth approx.270 mm
    Height approx.400 mm
    Weight approx.21 kg
    Electrical Data
    Delivery power0,6 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Noise emission
    Sound power level Lw85 dB(A)
    Explanation sound power level LwSound power level according to DIN EN ISO 3744 (RL 2000/14/EG)
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • pressure reducer
    • Automatic pressure switch

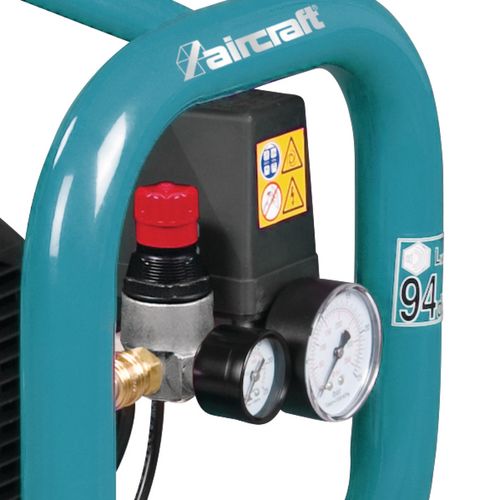

    • Pressure gauge for tank pressure
    • Pressure gauge for working pressure
    • High-quality one-hand quick coupling
    • Fully automatic on-off operation
    • Motor protection switch
    • Engine start relief
    • Boiler powder-coated
    • Vibration damping rubber feet
    • Rubberized handle against slipping



    Pressure regulationPressure regulator
    Automatic pressure switch
    Drive transmissionDirect-coupled
    Material compressed air lineAluminium
    Compressed air outletA quality one-hand quick coupling
    Pressure vesselPowder coated
    Compressor baseVibration damping rubber feet

    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
