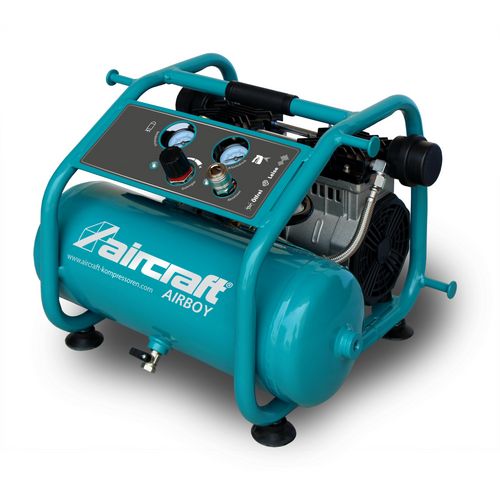

Piston compressor
AIRBOY SILENCE 241 OF E
Handy oil-free compressor with 10 bar maximum pressure
199,00
EUR excl. Tax / pc(s).
236,81 EUR incl. 19% Tax / pc(s).
236,81 EUR incl. 19% Tax / pc(s).
Promotional price *
189,00 EUR excl. Tax / pc(s).224,91 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 2000245
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Small, compact design
- Very quiet operation
- Oil-free piston compressor, thus no oil change necessary and no oil in the condensate
- Compressed air withdrawal via one-hand quick coupling
- Pressure reducer for stepless adjustment of the desired working pressure
- One pressure gauge each for display of tank and working pressure
- Electric motor equipped with motor protection switch
- Vibration damping suction cups
- Handle rubberized to prevent slipping during transport
- Compressed air tank powder coated
- Excellent running smoothness
- One-hand quick coupling
- Pressure regulator
- Frame to protect the compressor
| Compressed air tank | |
|---|---|
| Maximum pressure | 10 bar |
| Pressure vessel capacity | 8 l |
| Tank surface | Powder-coated |
| Compressor | |
|---|---|
| Compressor system | WDS |
| Oil-free / oil-lubricated | Oil-free |
| Suction capacity approx. | 240 l/min |
| Filling capacity approx. | 120 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Number of cylinders | 2 |
| Number of compressor stages | 1 |
| Piston stroke | 13 mm |
| Diameter of piston | 63,7 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 460 mm |
| Width/depth approx. | 410 mm |
| Height approx. | 350 mm |
| Weight approx. | 19 kg |
| Electrical Data | |
|---|---|
| Delivery power | 1,3 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Whisper quiet | Yes |
| Sound pressure level Lp | 62 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Pressure regulation | Pressure regulator |
| Automatic pressure switch | ✔ |
| Drive transmission | Direct-coupled |
| Material compressed air line | Flexible armoured hose line |
| Connection cable | 1.5 m |
| Connector | CEE 7/4 |
| Compressed air outlet | A one-hand quick coupling |
| Condensate drain | Ball valve |
| Pressure vessel | Powder-coated |
| Compressor base | Four suction cups |
