| Compressed air tank | |
|---|---|
| Maximum pressure | 14 bar |
| Tank surface | Galvanised |

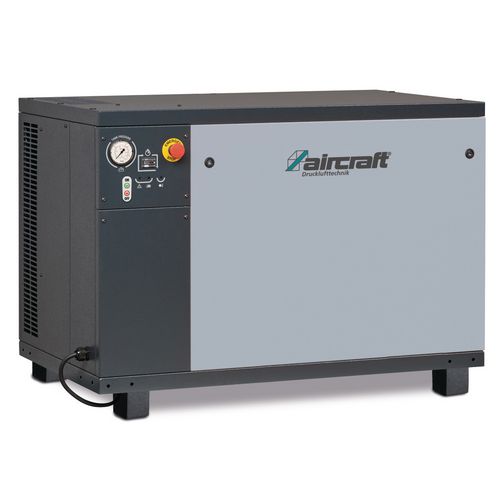

Piston compressor
AIRPROFI 903/15 Silent
For professional and industrial use where a quiet working environment is required
5.239,00
EUR excl. Tax / pc(s).
6.234,41 EUR incl. 19% Tax / pc(s).
6.234,41 EUR incl. 19% Tax / pc(s).
Promotional price *
4.269,00 EUR excl. Tax / pc(s).5.080,11 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2026 in Germany.
Art.-No. 2022855
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Extremely quiet due to sound-insulated housing and additional silencer on the intake filter
- Suitable for installation even in noise-sensitive areas and the direct working environment
- Two-cylinder high-performance unit made of grey cast iron with low speed warrantys particularly quiet and low-vibration operation: less wear and longer service life
- Large fan impeller on the compressor and temperature-controlled radial fan on the housing ensure optimum cooling of the entire interior
- Inter- and aftercooler as well as an additional air duct between motor and compressor reduce condensate formation
- High-quality Condor pressure switch

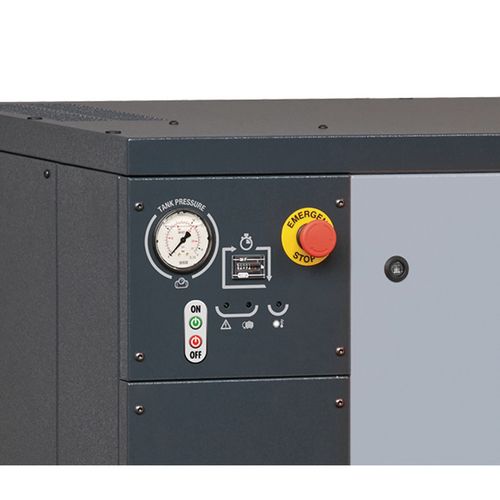

- Equipped with glycerine pressure gauge, hour meter and fault indication via LED lights
- Quality electric motor with motor protection switch and start-up relief
- Facility for easy tensioning of the V-belt
- Service-friendly design
- Ready for connection with all fittings and safety devices
- Extremely quiet due to sound-insulated housing and additional silencer on the intake filter
- Two-cylinder high-performance unit made of grey cast iron with low speed guarantee particularly quiet and low-vibration operation -> less wear - longer service life
- Large fan impeller on the compressor and temperature-controlled radial fan on the housing ensure optimum cooling of the entire interior
- Equipped with glycerine pressure gauge, operating hours counter and error display via LED lights
| Compressor | |
|---|---|
| Compressor system | HOS |
| Suction capacity approx. | 900 l/min |
| Filling capacity approx. | 735 l/min |
| Explanation filling capacity | at 12 bar working pressure |
| Number of cylinders | 2 |
| Number of compressor stages | 2 |
| Dimensions and weights | |
|---|---|
| Length approx. | 1290 mm |
| Width/depth approx. | 980 mm |
| Height approx. | 1060 mm |
| Weight approx. | 226 kg |
| Electrical Data | |
|---|---|
| Motor power | 7.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Manufacturer infos | |
|---|---|
| Manufacturer | Aircraft Kompressorenbau und Maschinenhandel GmbH |
| Address | Gewerbestraße Ost 6, 4921 Hohenzell, Austria |
| info@aircraft.at | |
| Noise emission | |
|---|---|
| Whisper quiet | Yes |
| Sound pressure level Lp | 64 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Two-stage compression two-cylinder high-performance unit
- Toothed drive belts
- Star-delta switch
- Automatic CONDOR pressure switch
- Motor protection
- Manometer
- On/off switch
- Hour meter
- Electric control unit
- Start unloading
| Pressure regulation | Pressure regulator |
| Star-delta switch | ✔ |
| Automatic pressure switch | CONDOR |
| Drive transmission | V-belt |
| Material compressed air line | Flexible armored conduit with heat protection |
| Compressed air outlet | Ball valve |
| Pressure vessel | Hot-dip galvanized inside and out with fifteen-year warranty against rust-through |
| Compressor base | Rubber buffers |
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6
4921 Hohenzell
Österreich / Austria
info@aircraft.at
Gewerbestraße Ost 6
4921 Hohenzell
Österreich / Austria
info@aircraft.at
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
