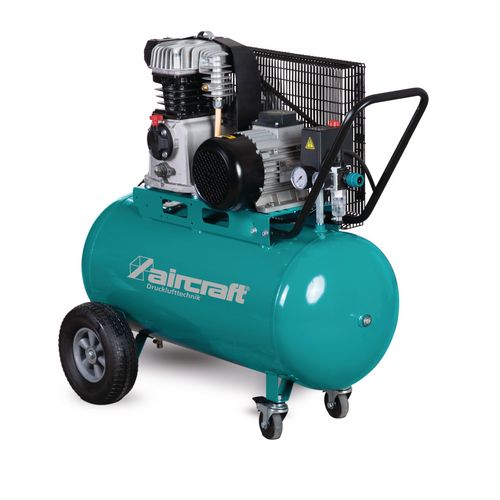

Piston compressor
AIRSTAR 603/90
Mobile piston compressors with belt drive
1.079,00
EUR excl. Tax / pc(s).
1.284,01 EUR incl. 19% Tax / pc(s).
1.284,01 EUR incl. 19% Tax / pc(s).
Promotional price *
1.029,00 EUR excl. Tax / pc(s).1.224,51 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 2007631
Are you interested in this product?
Put a request
Find Trader
Productdetails

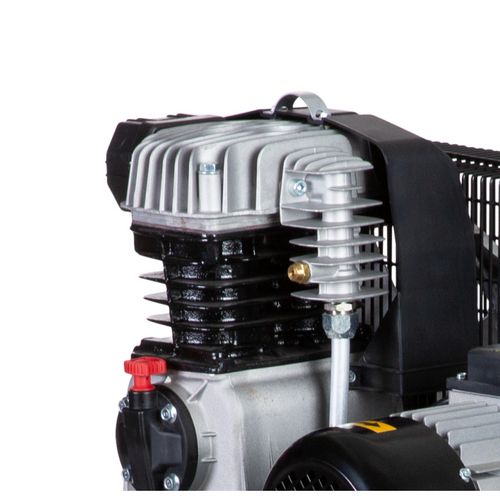

- Two-cylinder high-performance units made of gray cast iron for a long service life.
- Large fan wheel and a cooling air baffle on the cylinder for optimal cooling of the compressor
- Quality electric motor with high starting torque
- Electric motor equipped with motor protection switch
- Aftercooler with cooling fins ensures a low tank inlet temperature and thus less moisture in the compressed air
- Sturdy metal belt guard
- Start-up capacitor and start-up relief valve ensure easy start-up on 230 volt models
- Container pressure gauge "Made in Germany

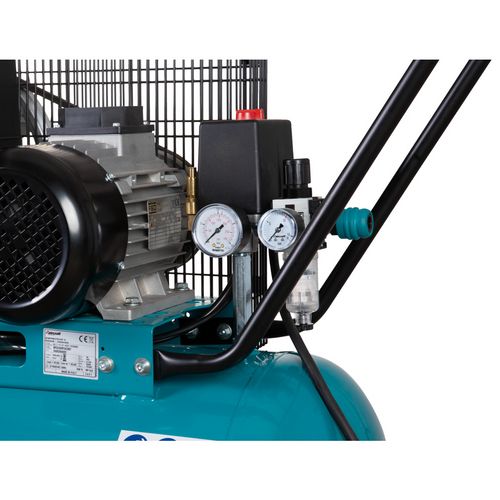

- Filter pressure regulator with pressure gauge "Made in Germany" for regulated compressed air cleaned of condensate, dirt and oil
- Ten-year warranty against rust-through on powder-coated compressed air reservoir
- Includes high quality composite safety coupling and high quality CONDOR pressure switch
- Large ergonomic handle

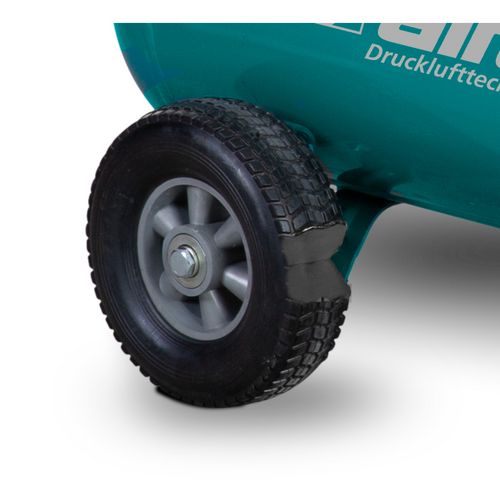

- Stable steering chassis with parking brake in combination with large, puncture-proof PU wheels
- Made in Europe
- Large fan wheel and a cooling air baffle on the cylinder for optimum cooling of the compressor
- Aftercooler with cooling fins for low vessel inlet temperature and less moisture in the compressed air
- Sturdy metal belt guard
- "Made in Germany": vessel pressure gauge; filter pressure regulator with pressure gauge for regulated compressed air cleaned of condensate, dirt and oil
- Ten-year warranty against rust-through on powder-coated compressed air reservoir
- Including high-quality composite safety coupling and high-quality CONDOR pressure switch
| Compressed air tank | |
|---|---|
| Maximum pressure | 10 bar |
| Pressure vessel capacity | 90 l |
| Tank vertical / horizontal | Prone |
| Tank surface | Powder-coated |
| Compressor | |
|---|---|
| Compressor system | HOS |
| Oil-free / oil-lubricated | Oil lubricated |
| Suction capacity approx. | 510 l/min |
| Filling capacity approx. | 400 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Number of cylinders | 2 |
| Number of compressor stages | 1 |
| Piston stroke | 58 mm |
| Diameter of piston | 65 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 1030 mm |
| Width/depth approx. | 440 mm |
| Height approx. | 850 mm |
| Weight approx. | 71 kg |
| Electrical Data | |
|---|---|
| Drive motor | Electric motor |
| Delivery power | 3,0 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Whisper quiet | No |
| Sound power level Lw | 94 dB(A) |
| Explanation sound power level Lw | Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG) |
| Sound pressure level Lp | 77 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Pressure regulation | Filter pressure regulator |
| Automatic pressure switch | CONDOR |
| Drive transmission | V-belt |
| Material compressed air line | Copper |
| Compressed air treatment | Filter pressure regulator |
| Connection cable | 2 m |
| Connector | 400 V CEE plug with phase inverter |
| Compressed air outlet | A safety clutch |
| Condensate drain | Ball valve |
| Pressure vessel | Powder-coated with a ten-year guarantee against rusting through |

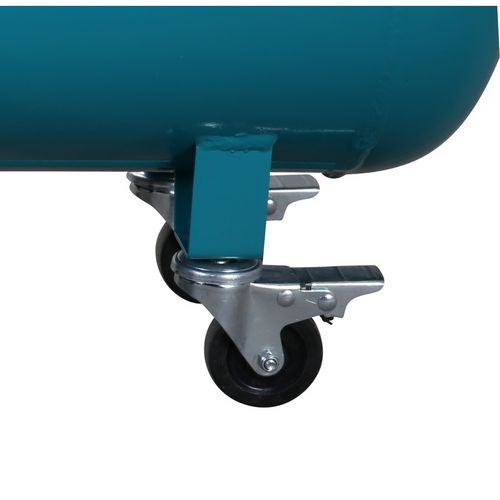

| Compressor base | Two wheels with PU foam tires, two swivel castors with locking brake |
