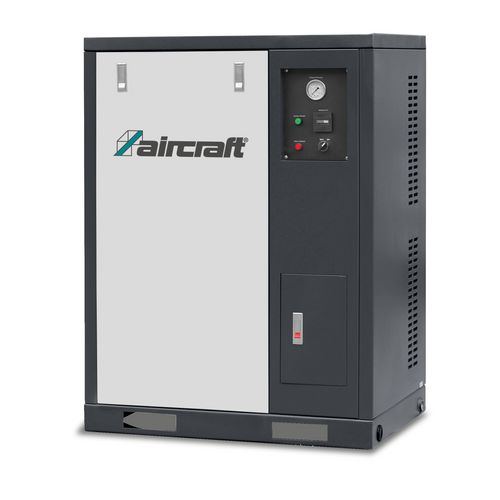

Piston compressor
AIRSTAR 903/10 Silent
Good performance in a compact housing, ideal for limited space
1.990,00
EUR excl. Tax / pc(s).
2.368,10 EUR incl. 19% Tax / pc(s).
2.368,10 EUR incl. 19% Tax / pc(s).
Promotional price *
1.899,00 EUR excl. Tax / pc(s).2.259,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 2022200
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Very quiet compressor for high operator comfort and minimal noise pollution
- Suitable for installation even in noise-sensitive areas and the immediate working environment
- Three-cylinder high-performance unit with low speed guarantees particularly quiet and low-vibration operation: less wear and longer service life
- Belt drive of the compressor with efficient energy transmission
- Housing and components are durable and resistant to wear and corrosion
- Equipped with star-delta start
| Compressed air tank | |
|---|---|
| Maximum pressure | 10 bar |
| Compressor | |
|---|---|
| Compressor system | HOS |
| Oil-free / oil-lubricated | Oil lubricated |
| Suction capacity approx. | 860 l/min |
| Filling capacity approx. | 520 l/min |
| Explanation filling capacity | at 7 bar working pressure |
| Number of cylinders | 3 |
| Number of compressor stages | 1 |
| Piston stroke | 60 mm |
| Diameter of piston | 80 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 850 mm |
| Width/depth approx. | 750 mm |
| Height approx. | 1110 mm |
| Weight approx. | 255 kg |
| Electrical Data | |
|---|---|
| Delivery power | 5,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Whisper quiet | No |
| Sound power level Lw | 95 dB(A) |
| Explanation sound power level Lw | Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG) |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Pressure regulation | Pressure regulator |
| Star-delta switch | ✔ |
| Automatic pressure switch | ✔ |
| Drive transmission | V-belt |
