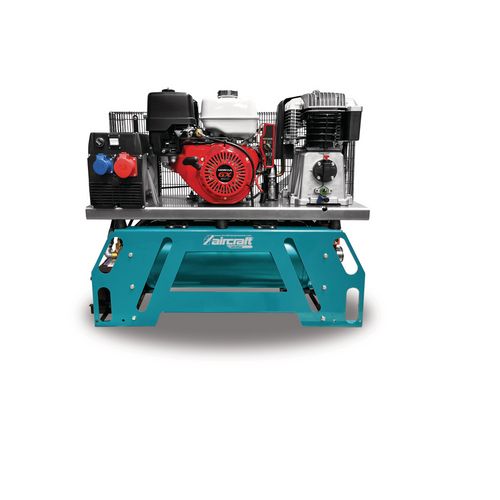

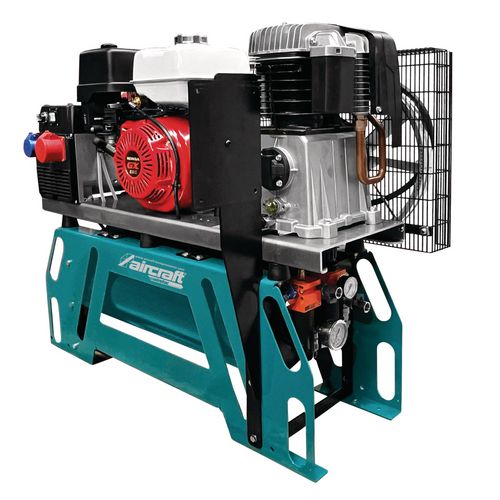

Piston compressor
AIRSTAR 903/50/15 HG
Petrol-powered piston compressor including power unit
6.650,00
EUR excl. Tax / pc(s).
7.913,50 EUR incl. 19% Tax / pc(s).
7.913,50 EUR incl. 19% Tax / pc(s).
Promotional price *
5.999,00 EUR excl. Tax / pc(s).7.138,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 2028725
Are you interested in this product?
Put a request
Find Trader
Productdetails
- The two-stage compression 2-cylinder high-performance cast iron unit achieves a very low speed, resulting in particularly quiet and low-vibration operation. This ensures a longer service life due to less wear
- Belt drive by Honda GX390 engine with low oil and fuel consumption as well as low noise and vibration levels
- Energy efficiency: The Honda GX390 engine is known for its low oil and fuel consumption, which reduces operating costs
- With a high air delivery rate of 900 liters per minute, this compressor is ideal for demanding applications
- Versatility: Equipped with a generator for both three-phase (7 kVA) and single-phase (3.5 kVA) power supply
- Easy maintenance: thanks to the integrated filter and lubrication equipment, the compressor remains clean and efficient
- Simple operation thanks to electric and manual start
- Compressed air tank equipped with safety valve, tank pressure gauge and condensate drain cock
- Sturdy metal belt guard
- Socket design: CEE socket 230V / 16A and CEE socket 400V / 16 A
- Two-stage compression 2-cylinder high-performance cast iron unit with very low speed
- Particularly quiet and low-vibration running is achieved
- Longer service life due to less wear
- Powered by Honda GX390 engine with low oil and fuel consumption and low noise and vibration levels
- High air delivery rate of 900 liters per minute
- With generator for three-phase (7 kVA) and single-phase (3.5 kVA) power supply
- With electric and manual start
| Compressed air tank | |
|---|---|
| Maximum pressure | 15 bar |
| Pressure vessel capacity | 50 l |
| Tank surface | Powder-coated |
| Compressor | |
|---|---|
| Compressor system | HOS |
| Oil-free / oil-lubricated | Oil lubricated |
| Suction capacity approx. | 900 l/min |
| Filling capacity approx. | 740 l/min |
| Number of cylinders | 2 |
| Number of compressor stages | 2 |
| Compressor speed from to | 700 1300 min¯¹ |
| Dimensions and weights | |
|---|---|
| Length approx. | 1250 mm |
| Width/depth approx. | 600 mm |
| Height approx. | 1150 mm |
| Weight approx. | 186 kg |
| Electrical Data | |
|---|---|
| Motor speed from to | 1700 3000 min¯¹ |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Whisper quiet | No |
| Sound power level Lw | 98 dB(A) |
| Sound pressure level Lp | 97 dB(A) |
| Power generator | |
|---|---|
| Nominal voltage | 230 / 400 V |
| Max. Voltage deviation (+/-) | 1,5 % |
| Limited output power (apparent power) | 3.5 / 7.0 kVA |
| Limited output power (active power) | 2.8 / 5.6 kW |
| Continuous output power (apparent power) | 3.0 / 6.0 kVA |
| Continuous output power (active power) | 2.4 / 4.8 kW |
| Socket type | CEE 230V 16A / CEE 400V 16A |
| Power factor | 0.8 cos phi |
| Generator protection class | IP 23 |
| Drive | Belt drive |
| Output max. drive motor | 8,7 kW |
| Starter | E-Start |
| Tank capacity | 6,1 l |
| Fuel | Gasoline |
| Running time at 50% load | 4,5 h |
| Running time at 100% load | 2,8 h |
| Fuel consumption at 75% load | 3 l/h |
| Speed | 3000 min¯¹ |
| Socket IP degree of protection | IP 44 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Pressure regulation | Filter pressure regulator |
| Drive transmission | V-belt |
| Compressed air treatment | ✔ |
| Filter for particle size | 20 µm |
| Condensate drain | ✔ |
