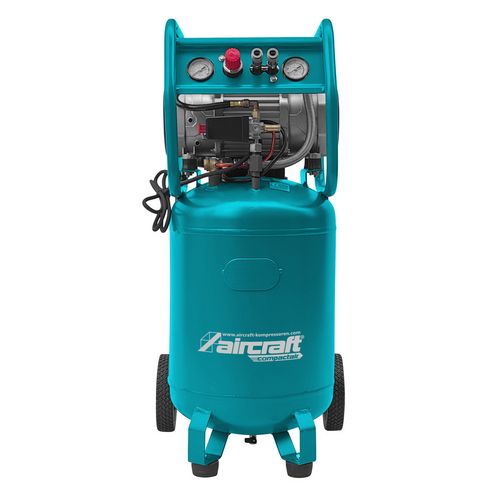

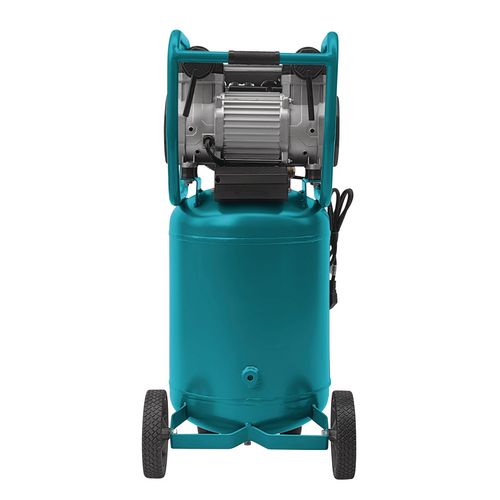

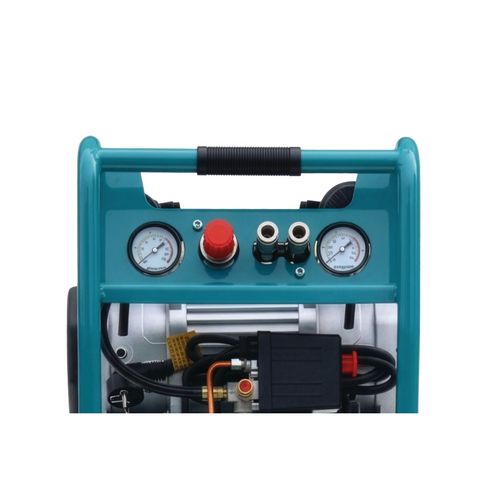

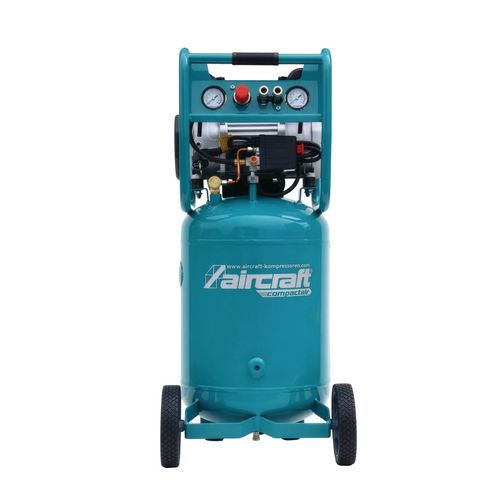

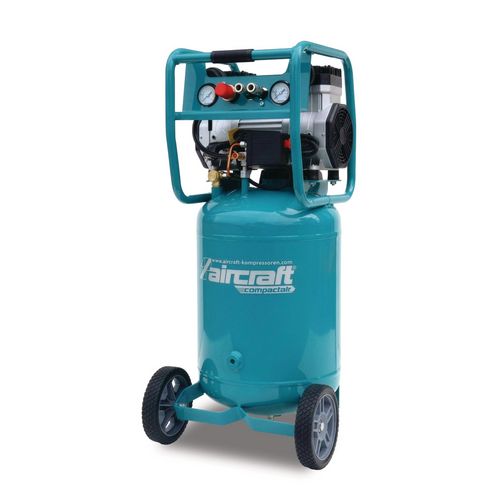

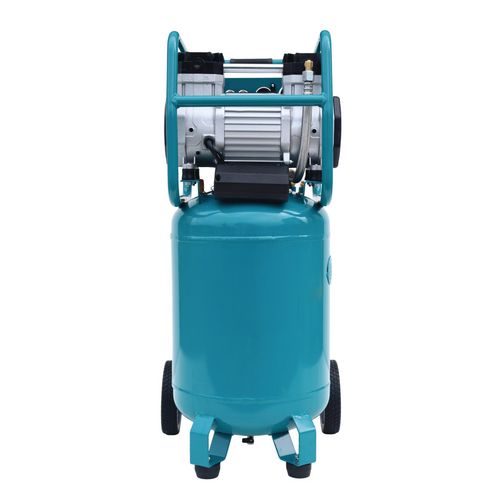

Piston compressor
COMPACT-AIR 401/50 OF E
Handy and mobile oil-free universal compressor
345,00
EUR excl. Tax / pc(s).
410,55 EUR incl. 19% Tax / pc(s).
410,55 EUR incl. 19% Tax / pc(s).
Promotional price *
319,00 EUR excl. Tax / pc(s).379,61 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 2005452
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Versatile in use
- Switches and fittings are optimally protected by the tubular frame
- Oil-free piston compressor, so no oil change necessary and no oil in the condensate
- Compressed air extraction via two one-hand quick-release couplings
- Pressure reducer for infinitely variable adjustment of the desired working pressure
- One pressure gauge each for displaying the tank and working pressure
- Aluminum-wound electric motor equipped with circuit breaker
- Sturdy wheels with solid rubber tires and wide wheelbase for comfortable transport even on uneven surfaces and a stable stand
- Vibration-damping rubber feet
- Rubberized handle to prevent slipping during transport
- Powder-coated compressed air tank
| Compressed air tank | |
|---|---|
| Maximum pressure | 10 bar |
| Pressure vessel capacity | 50 l |
| Tank vertical / horizontal | Standing |
| Tank surface | Powder-coated |
| Compressor | |
|---|---|
| Oil-free / oil-lubricated | Oil-free |
| Suction capacity approx. | 400 l/min |
| Filling capacity approx. | 200 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Number of cylinders | 2 |
| Number of compressor stages | 1 |
| Piston stroke | 18 mm |
| Diameter of piston | 69,7 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 420 mm |
| Width/depth approx. | 420 mm |
| Height approx. | 920 mm |
| Weight approx. | 46 kg |
| Electrical Data | |
|---|---|
| Delivery power | 2,1 kW |
| Drive motor output | 1,5 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Sound power level Lw | 89 dB(A) |
| Explanation sound power level Lw | Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG) |
| Sound pressure level Lp | 69 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Pressure regulation | Pressure regulator |
| Automatic pressure switch | ✔ |
| Connection cable | 1.5 m |
