| Compressed air tank | |
|---|---|
| Maximum pressure | 10 bar |
| Pressure vessel capacity | 24 l |
| Tank surface | Powder-coated |
Piston compressor

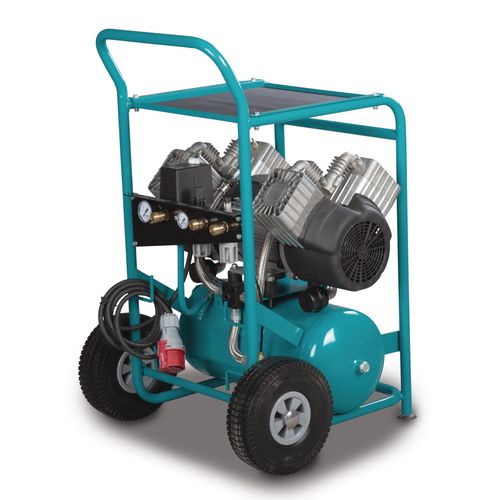

COMPACT-AIR 440 OF PRO
Powerful, universally applicable compressor in all-round protected compact design
2.199,00
EUR excl. Tax / pc(s).
2.616,81
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2015550
Are you interested in this product?
Put a request
Find Trader
Productdetails
The compact hand truck design enables easy transportation. Thanks to the all-round protection, it is ideally suited for daily assembly work. All parts at risk of transport are optimally protected.

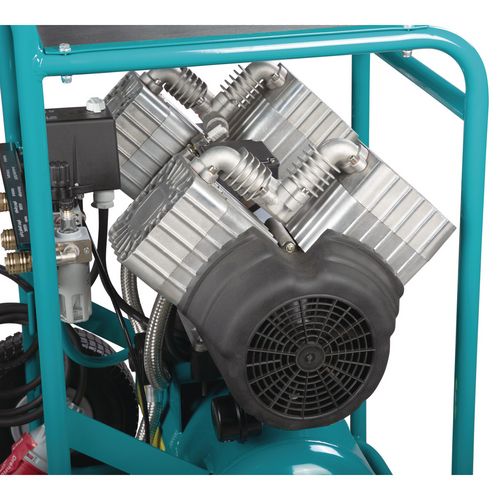

Smooth, oil-free V-unit
- No oil change necessary and no oil in the condensate
- Low speed, therefore high Service life
- Very quiet running and extremely quiet
- High quality coating on the cylinder surfaces and pistons for a long service life
- Air flows directly through the cylinder and ensures effective cooling
High-quality maximum equipment

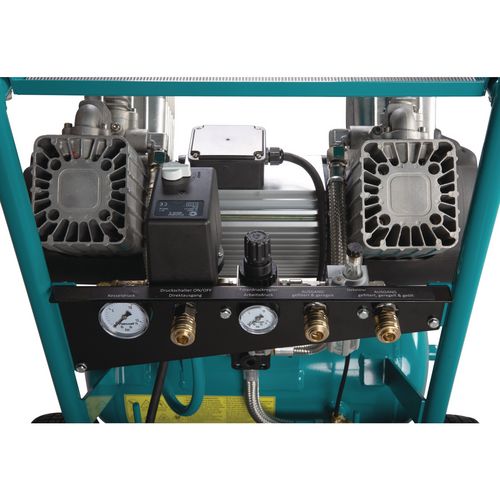

- Filter pressure regulator for stepless adjustment of the working pressure with simultaneous dirt and condensate separation
- Fog oiler for metered lubrication of the tools
- One compressed air extraction point each for filtered compressed air, filtered and oiled compressed air and a direct outlet from the tank
- High-quality CONDOR pressure switch
- One manometer each for tank and working pressure
- Standard with internal protected hose and cable hooks
- Quality electrical motor with high tightening torque and motor protection switch
Tool holder
- The tool holder above the compressor also protects it during transport
- It is also a practical storage for e.g. Tool to use
- Suitable for the standard systainers of all electrical tool manufacturers such as: Makita, Festool, Mafell, ...
Convenient transport and a safe stand
- Thanks to the optimal frame geometry, one person can transport a staircase
- Easy to tilt and drive back-friendly

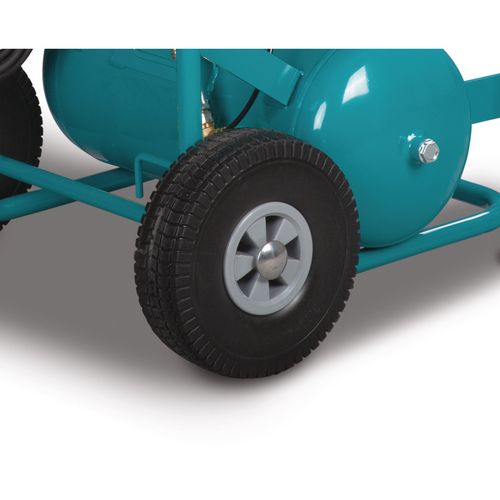

- Puncture-proof PU foam wheels with a wide wheelbase
Compressed air lines and containers with a long service life
- Flexible armored hose lines with heat protection prevent vibrations from breaking
- Powder-coated compressed air containers
- Thanks to the protected hand truck construction, it is ideally suited for daily use on construction sites
- Smooth-running, oil-free V-unit
- High-quality maximum equipment
- One compressed air extraction point each for filtered compressed air, filtered and oiled compressed air and a direct outlet from the tank
| Compressor | |
|---|---|
| Compressor system | HDS+ |
| Oil-free / oil-lubricated | Oil-free |
| Suction capacity approx. | 440 l/min |
| Filling capacity approx. | 270 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Number of cylinders | 4 |
| Number of compressor stages | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 590 mm |
| Width/depth approx. | 620 mm |
| Height approx. | 960 mm |
| Weight approx. | 71 kg |
| Electrical Data | |
|---|---|
| Motor power | 1.7 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Whisper quiet | No |
| Sound pressure level Lp | 70 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Pressure regulation | Filter pressure regulator |
| Automatic pressure switch | CONDOR |
| Drive transmission | Direct-coupled |
| Material compressed air line | Flexible armored conduit with heat protection |
| Compressed air treatment | Filter pressure regulator. mist lubricator |
| Connection cable | 1.8 m |
| Compressed air outlet | Three qualitiy quick-action couplings |
| Pressure vessel | Powder-coated |
| ZÜS tested | Testing before commissioning can also be carried out by a qualified person |
| Compressor base | Two wheels with PU foam tires. two suction cups |
| Operating hours counter | ✔ |
